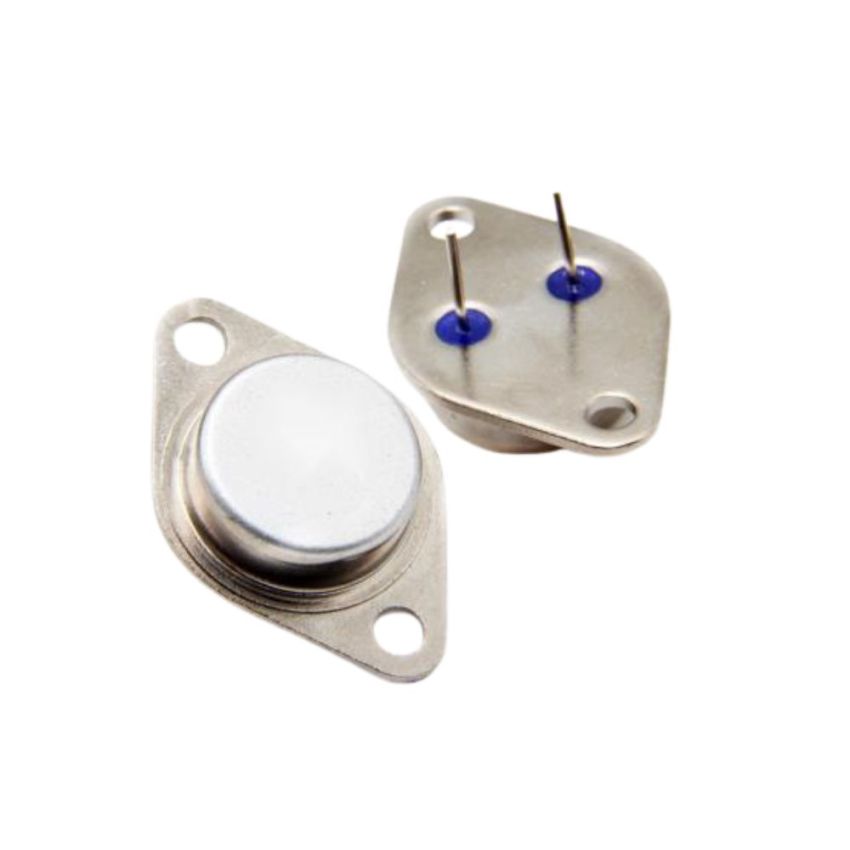

MJ11022, NPN Darlington Power Transistor, TO-3

The MJ11022 is an NPN Darlington power transistor housed in a TO-3 package. It is designed for general-purpose amplifiers, low-frequency switching, and motor control applications. The transistor offers a high DC current gain with a minimum h_FE of 400 at 10 A, ensuring strong signal amplification. It supports a collector current of up to 30 A and a collector-emitter voltage of 250 V, making it suitable for high-power applications. The device features a low collector-emitter saturation voltage, ensuring efficient performance with minimal power loss. Its monolithic construction ensures reliability and robustness in demanding applications. Encased in a standard TO-3 package, the MJ11022 provides efficient heat dissipation and ease of mounting.

• High DC Current Gain: Minimum h_FE of 400 at 10 A, providing strong amplification.
• High Collector-Emitter Voltage: Rated at 250 V, enabling operation in high-voltage circuits.
• High Collector Current: Supports up to 30 A, suitable for high-power applications.
• Low Saturation Voltage: Typical V_CE(sat) of 1.0 V at 5 A, ensuring efficient performance with minimal voltage drop.
• Monolithic Construction: Ensures reliability and robustness in demanding applications.
• Standard TO-3 Package: Facilitates easy mounting and efficient heat dissipation.
