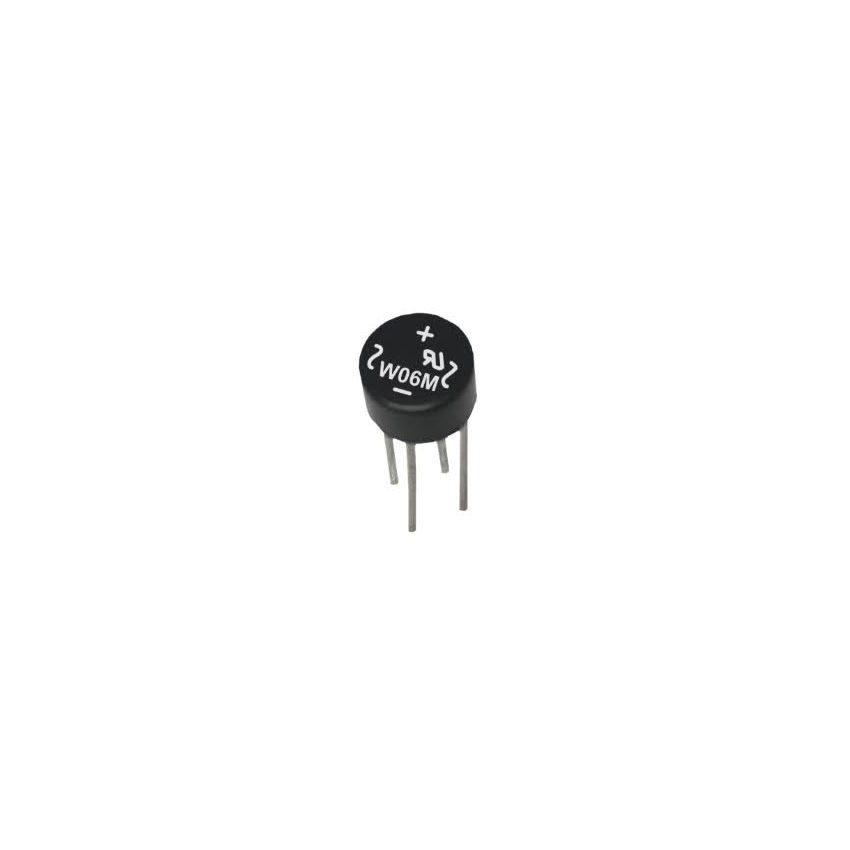

W06M, Single-Phase Bridge Rectifier, 600V 1.5A

The W06M is a glass passivated single-phase bridge rectifier housed in a compact, circular epoxy-molded case. Rated for 600V peak reverse voltage and 1.5A average forward current, it is ideal for general-purpose AC-to-DC rectification in adapters, chargers, and power supply circuits. With polarity clearly marked on the case and a small footprint, it provides a reliable and space-saving solution for various electronic applications.

Key Features:

• Compact round epoxy-encapsulated case for PCB or panel mounting.
• 600V peak reverse voltage for standard AC mains rectification.
• 1.5A average forward current for general-purpose power conversion.
• Molded case with marked polarity for quick and easy installation.
• Low forward voltage drop for improved efficiency.
• Designed for low to medium power AC-to-DC conversion applications.

Additional Specifications:

• Type: Single Phase Bridge Rectifier​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 600V
• Forward Average Current (If): 1.5A
• Forward Voltage (Vf): 1.1V At 1.5A
• Maximum Surge Current: 50A
• Reverse Current (Ir): <=10µA
• Dimensions: 10x5MmØ
