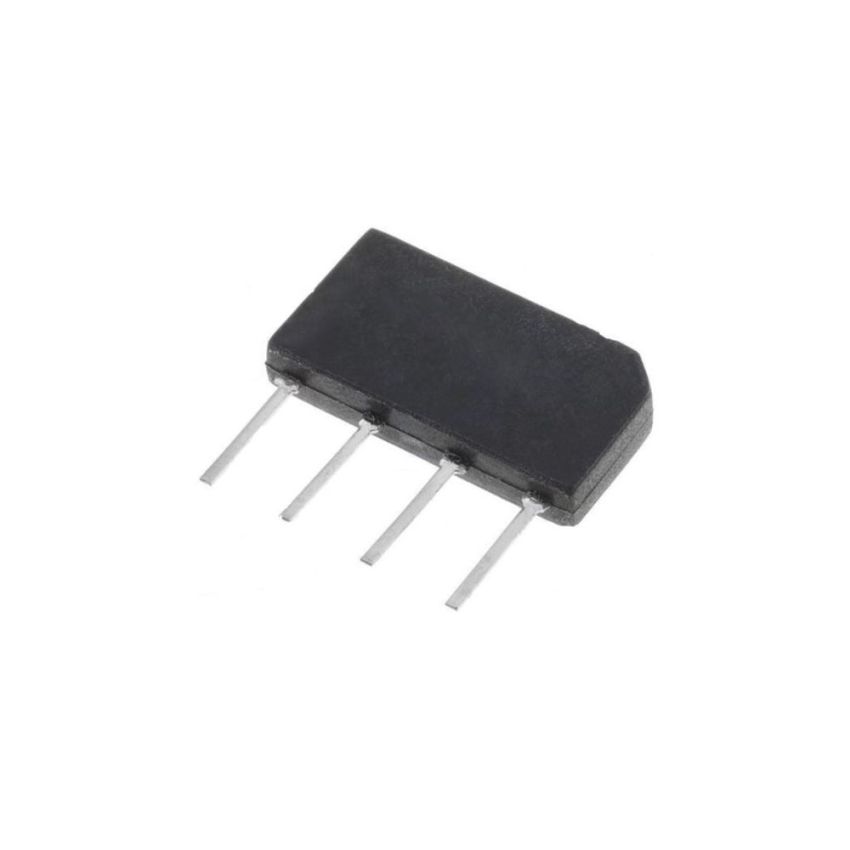

B380C2300,Bridge Rectifier,2.3A,800V

The B380C2300 Bridge Rectifier is a high-performance silicon rectifier designed for efficient AC to DC conversion. With a repetitive peak reverse voltage (VRRM) of 800V and a nominal current rating of 2.3A, this bridge rectifier is ideal for a variety of applications, including power supplies, industrial control systems, and consumer electronics.

Built to handle high surge currents of up to 50A, the B380C2300 provides reliable protection against transient conditions, ensuring stable circuit performance. Encased in a compact 19mm x 3.5mm x 10mm plastic case, it is lightweight and designed for easy integration into PCB-mounted designs.

The rectifier's UL94V-0 flame-resistant plastic casing enhances safety, while its wide operating temperature range (-50°C to +150°C) ensures durability in both high- and low-temperature environments. The B380C2300 is an excellent choice for engineers and hobbyists seeking dependable performance in space-constrained designs.

• High Voltage and Current Capacity: Rated for 800V repetitive peak reverse voltage (VRRM) and 2.3A nominal current.
• Robust Surge Handling: Handles a peak forward surge current of 50A, ensuring reliable protection against voltage spikes.
• Compact and Lightweight Design: Encased in a 19mm x 3.5mm x 10mm plastic case for efficient PCB integration.
• Durable and Flame-Resistant Material: Plastic case complies with UL94V-0 flammability rating, providing added safety and durability.
• Efficient Thermal Performance: Designed with a thermal resistance junction to ambient air of <40 K/W, ensuring reliable operation in demanding conditions.
• Wide Operating Temperature Range: Operates efficiently from -50°C to +150°C, suitable for both industrial and consumer applications.
