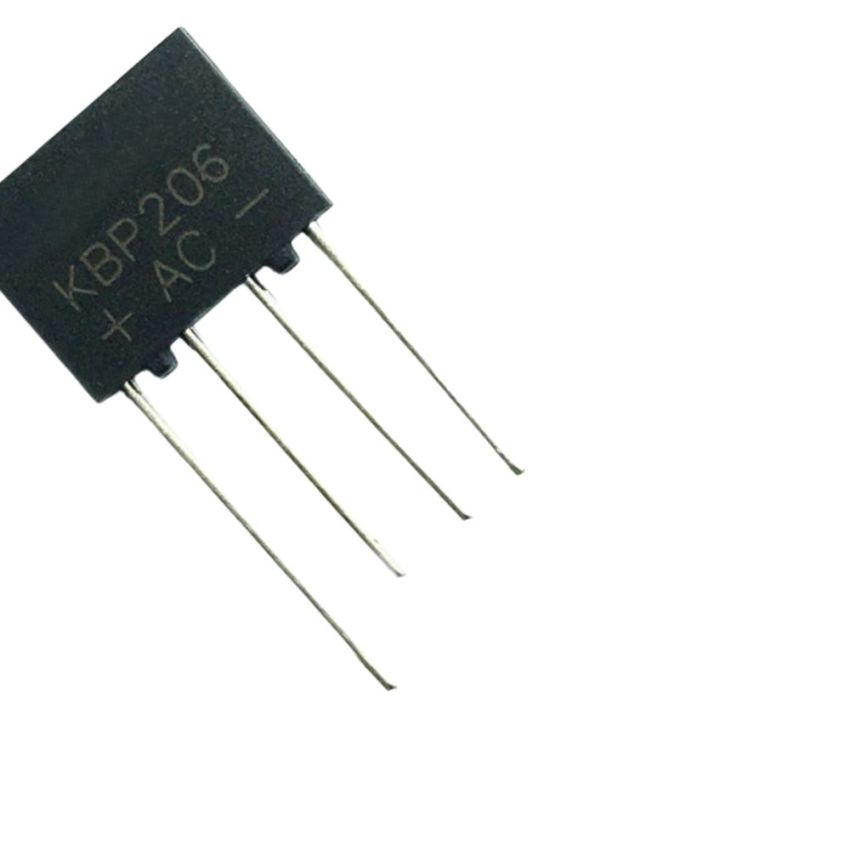

KBP206, Single-Phase Bridge Rectifier, KBP Package

The KBP206 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic applications. With a repetitive peak reverse voltage of 600V and a forward average current of 2A, it is suitable for low to moderate power applications. The device features a low forward voltage drop, high surge current capability, and is housed in a compact KBP package ideal for printed circuit boards. Its high-temperature soldering capability ensures reliability during assembly processes.

• High Voltage Rating: Withstands a repetitive peak reverse voltage (V_RRM) of 600V, suitable for various high-voltage applications.
• Moderate Forward Current: Capable of delivering a forward average current (I_F) of 2A, making it ideal for low to moderate power applications.
• Low Forward Voltage Drop: Exhibits a forward voltage (V_F) of 1.1V at 2A, ensuring efficient operation with minimal power loss.
• High Surge Current Capability: Withstands surge currents up to 60A, providing robustness against transient conditions.
• Compact KBP Package: Designed for printed circuit boards with built-in stand-offs, facilitating easy mounting and space-saving designs.
• High Temperature Soldering: Allows for high-temperature soldering up to 265°C for 10 seconds, ensuring durability during assembly.
