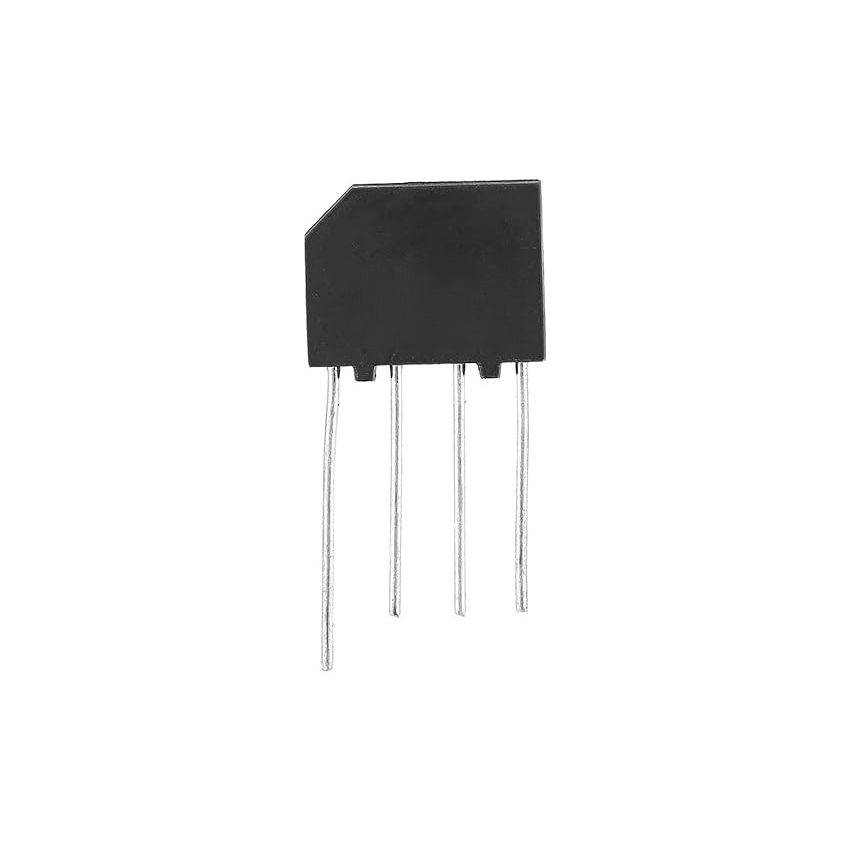

26FBP06, Glass Passivated Bridge Rectifier, SIP-4

The 26FBP06 is a 2.5A single-phase bridge rectifier with a peak reverse voltage of 600V, designed for AC-to-DC conversion in compact power supply circuits. Housed in a space-saving SIP-4 package, this rectifier offers reliable performance with a low forward voltage drop and excellent thermal resistance. Its rugged epoxy encapsulated case and radial leads make it ideal for through-hole PCB designs where efficiency and safety are essential.

Key Features:

• 2.5A average forward current for standard power rectification.
• 600V peak reverse voltage suitable for moderate-voltage AC/DC conversion.
• Compact SIP-4 molded case ideal for PCB mounting.
• UL recognized and epoxy sealed for enhanced durability.
• Glass passivated junction for high reliability and stability.
• Withstands up to 100A peak surge current for transient protection.

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 600V
• Forward Average Current (If): 2.5A
• Forward Voltage (Vf): 1.1V At 2.5A
• Maximum Surge Current: 100A
• Reverse Current (Ir): 10µA
• Dimensions: 17.5x6.5x17Mm
