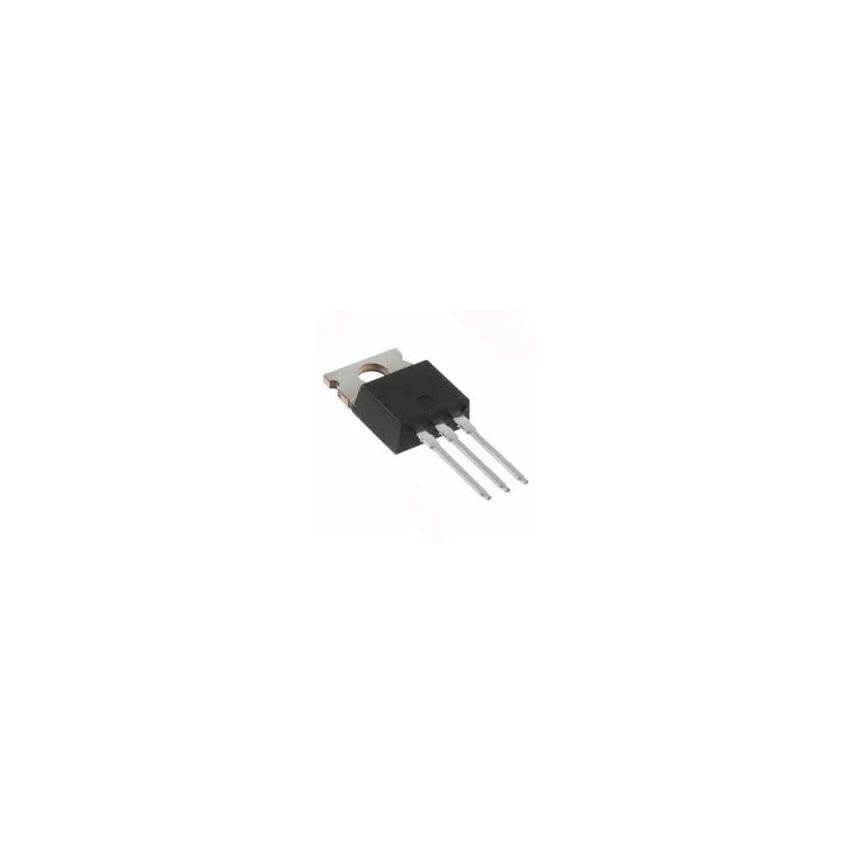

IRF644,Power MOSFET,250V,14A,TO-220AB

The IRF644 is a high-performance N-Channel Power MOSFET with a maximum Drain-Source Voltage of 250V and a continuous current rating of 14A, making it suitable for a wide range of power switching applications. Manufactured using advanced processes, this device ensures low on-resistance (0.28Ohm typical at 10V) and fast switching speed, contributing to reduced power losses and improved efficiency.

Designed for dynamic and repetitive avalanche-rated operations, the IRF644 supports ease of paralleling and simple drive requirements. Its rugged construction, coupled with the TO-220AB package, ensures durability and reliability in industrial and high-power applications such as motor controls, power supplies, and switching circuits.

Key Features :

• Advanced N-Channel Power MOSFET with a maximum Drain-Source Voltage of 250V.
• Continuous current handling capacity of up to 14A at 25C.
• Low on-resistance of 0.28Ohm ensures minimized conduction losses.
• Optimized for high-speed switching with a gate charge of 35nC.
• Repetitive avalanche-rated for reliability under dynamic stress conditions.
• Encased in the TO-220AB package for excellent thermal performance and ease of mounting.
