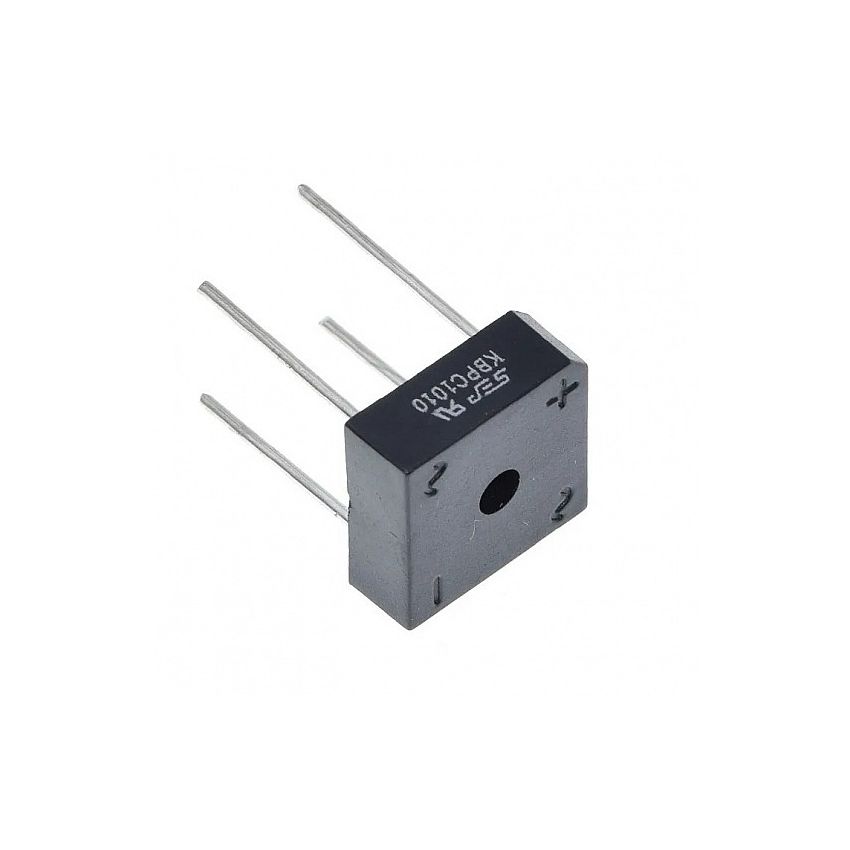

KBPC1010, 1000V 10A Single-Phase Bridge Rectifier, KBPC Package

The KBPC1010 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in power supply applications. Its robust construction allows it to handle high currents and voltages, making it ideal for use in power supplies, battery chargers, and motor drives. The compact KBPC package with an electrically isolated metal case ensures efficient heat dissipation and ease of installation.​

Key Features:

• High Voltage and Current Handling: Supports up to 1000V repetitive peak reverse voltage and 10A average forward current, suitable for various power applications.​
• Surge Overload Capability: Withstands non-repetitive surge currents up to 150A, providing robustness against transient conditions.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.1V at 5A reduces power losses and enhances efficiency.​
• Electrically Isolated Metal Case: Provides 2500V RMS isolation voltage, enhancing safety and simplifying mounting.​
• Compact KBPC Package: Facilitates easy installation with a central mounting hole for secure attachment and efficient heat dissipation.​
• Wide Operating Temperature Range: Operates reliably between -55°C to +150°C, suitable for various environments.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Chassis Mount
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 10A
• Forward Voltage (Vf): 150A
• Maximum Surge Current: 1.1A At 5A
• Reverse Current (Ir): -55+150°C
• Dimensions: 19x19x22Mm
