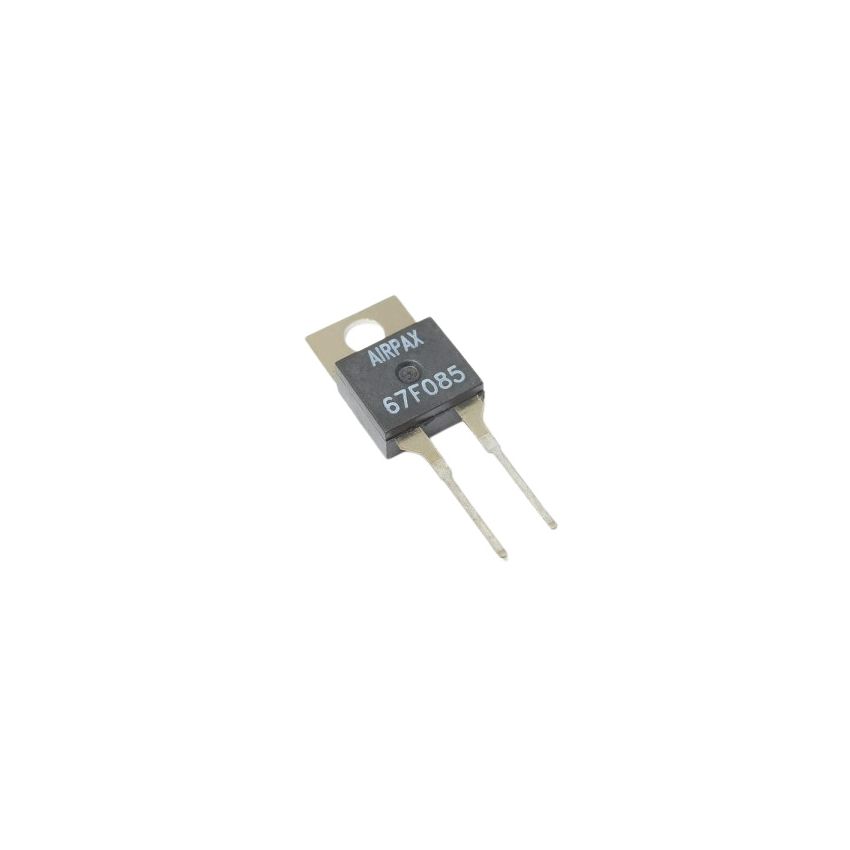

67F085, Thermal Protector Switch, 85°C Trip Temp

The AIRPAX 67F085 thermal protector is a temperature-sensitive, snap-action switch that opens at a preset temperature of 85°C, automatically resetting once the temperature drops below the threshold. It's epoxy-sealed for durability and environmental resistance, making it ideal for use in temperature-critical applications such as transformers, motor windings, battery packs, and lighting circuits. This protector ensures reliable and accurate thermal cutoff for safety and performance.

Key Features:

• Bimetallic, automatic reset thermal protector.
• Factory-calibrated to open at 85°C for consistent protection.
• Compact and rugged epoxy-sealed design.
• Snap-action mechanism for quick contact separation.
• Rated for 6.5A at 120VAC / 5A at 240VAC.
• Widely used in transformers, motors, battery packs, and lighting.

Additional Specifications:

• Accuracy: ±5°C
• Operating Temperature Range: -20+150°C
• Display: N/A
• Measuring distance: Contact Based
