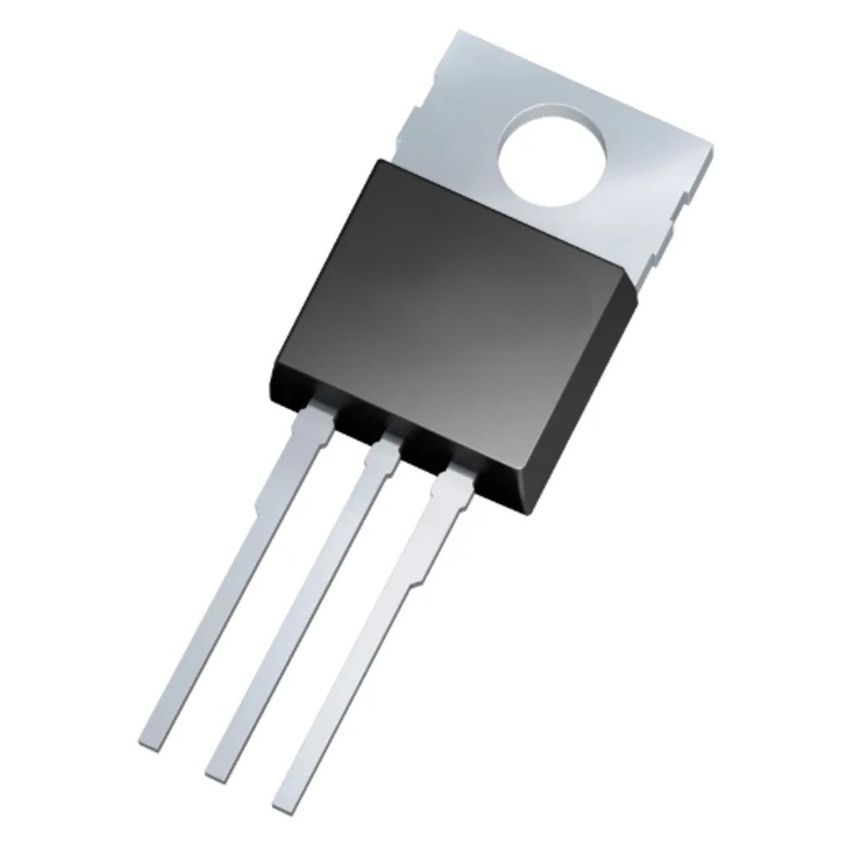

TYN610, SCR, TO-220, 600V, 10A

The TYN610 is a silicon-controlled rectifier (SCR) designed for general-purpose applications, including overvoltage protection, motor control circuits, inrush current limiting, and voltage regulation. Its high voltage and current ratings, combined with a low gate trigger current, make it versatile for various AC switching and control applications.​

Key Features:

• High Voltage Capability: Withstands up to 600V repetitive peak off-state voltage (V_DRM).​
• Moderate Current Handling: Delivers 10A RMS on-state current (I_T(RMS)) at 100°C.​
• Low Gate Trigger Current: Requires only 15mA gate trigger current (I_GT) for reliable switching.​
• Fast Switching: Typical turn-on time of 2µs, suitable for high-frequency applications.​
• Robust Surge Capability: Handles non-repetitive surge currents up to 100A (10ms half-sine wave).​
• Standard TO-220 Package: Ensures easy mounting and efficient heat dissipation.​

Additional Specifications:

• Mounting Style: Through Hole
• Gate Trigger Voltage (Vgt): 1.5V
• Gate Trigger Current (Igt): 15Ma
• Non repetitive surge peak on-state current (ITSM): 100A
• Operating temprature Range: -40+125°C
• Rated Repetitive Off-State Voltage (VDRM): 600V
