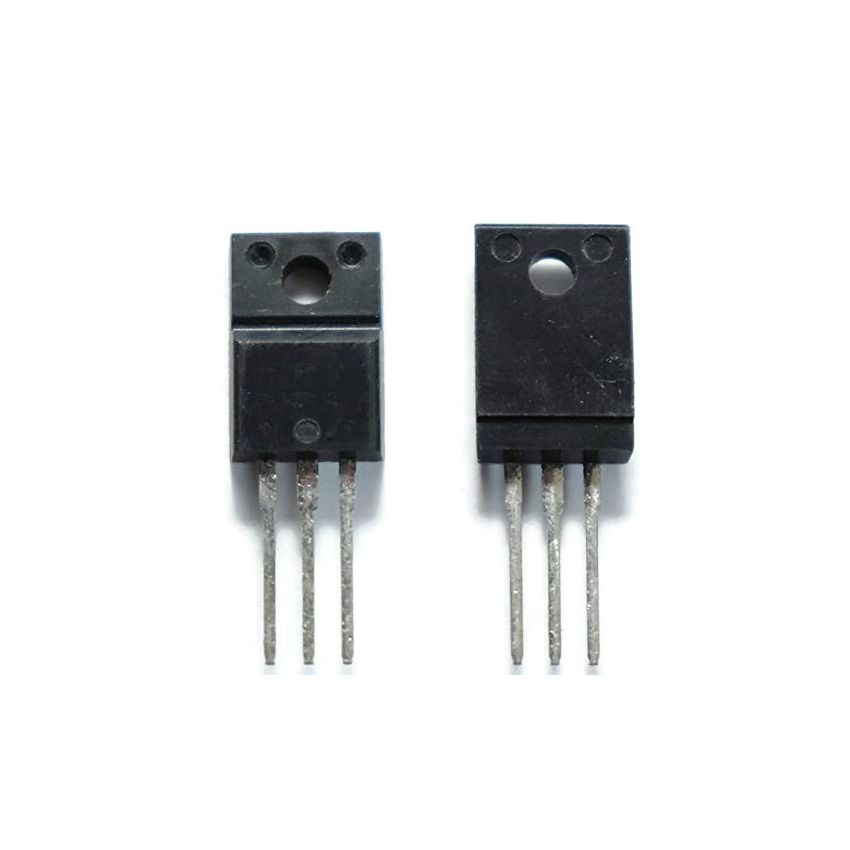

SSS50N60, N-Channel MOSFET, TO-220

The SSS50N60 is a high-performance N-channel MOSFET designed for high-voltage and high-current switching applications. With a drain-source voltage rating of 600V and a continuous drain current of 50A, it’s an excellent choice for power converters, motor control, and inverter circuits. The TO-220 package allows for easy heatsinking, making it suitable for thermally demanding environments. Its low gate threshold voltage enables compatibility with low-voltage logic.

Key Features:

• High voltage N-channel MOSFET with 600V Vds rating.
• Capable of handling continuous current up to 50A.
• Low gate threshold voltage ensures easy drive from logic-level signals.
• TO-220 package provides excellent heat dissipation.
• Ideal for switching power supplies and motor drivers.
• Robust design supports operation at high temperatures up to 150°C.

Additional Specifications:

• Mounting Style: Through Hole
• Continuous Current Drain (Id): 50A
• Drain-Source Breakdown Voltage (Vds): 600V
• Gate-Source Threshld Voltage (Vgs th): 2-4V
• Power Dissipation: 208W
• Operating Temprature: -55+150°C
