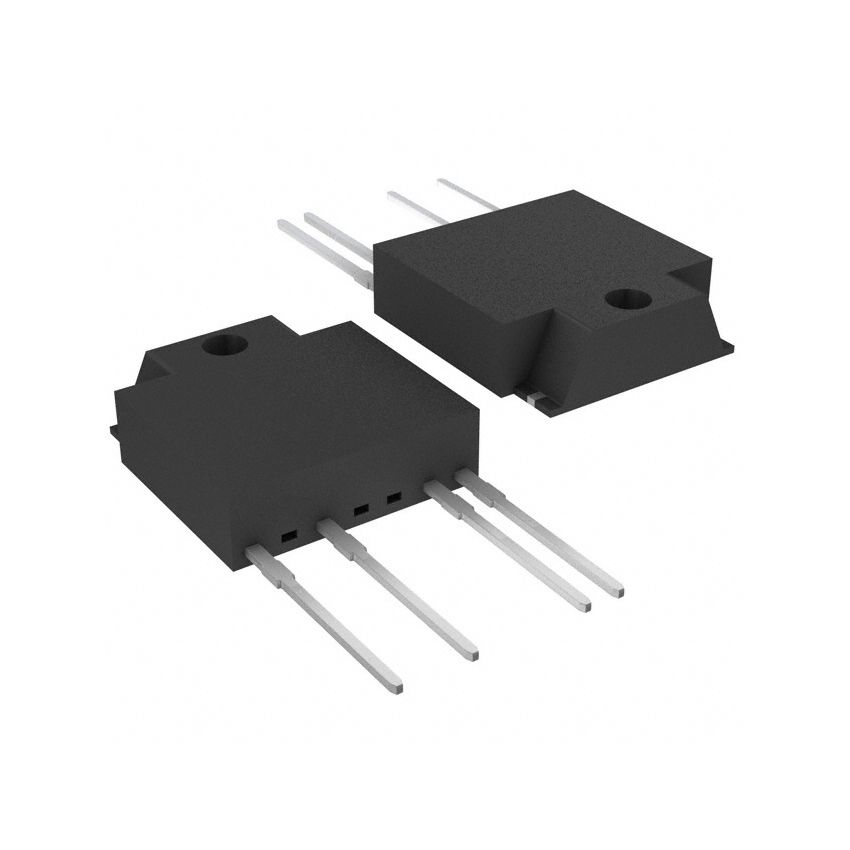

S202S02, Isolated TRIAC Output with Zero-Cross, SIP-4

The S202S02 is a solid-state AC switch module with an integrated TRIAC output. It is ideal for switching resistive or inductive loads in AC circuits, particularly in HVAC, lighting control, home appliances, and industrial systems. It offers high reliability, zero-cross switching, and isolation through its built-in phototriac driver.

Key Features:

• Integrated Zero-Cross Function: Reduces EMI during AC switching.
• Built-in Phototriac Driver: Optically isolated for high noise immunity.
• High Load Switching: Controls up to 8 A @ 250V AC with a heatsink.
• Compact SIP-4 Package: Slim, through-hole design with mounting hole.
• UL & CSA Certified: Ensures compliance for industrial and consumer applications.
• Solid-State Reliability: Long life, vibration resistant, and no mechanical wear.

Additional Specifications:

• Mounting Style: Through Hole
• Gate Trigger Voltage (Vgt): 1.2V
• Gate Trigger Current (Igt): 8Ma
• Non repetitive surge peak on-state current (ITSM): 80A
• Operating temprature Range: -25+100°C
• Rated Repetitive Off-State Voltage (VDRM): 600V
