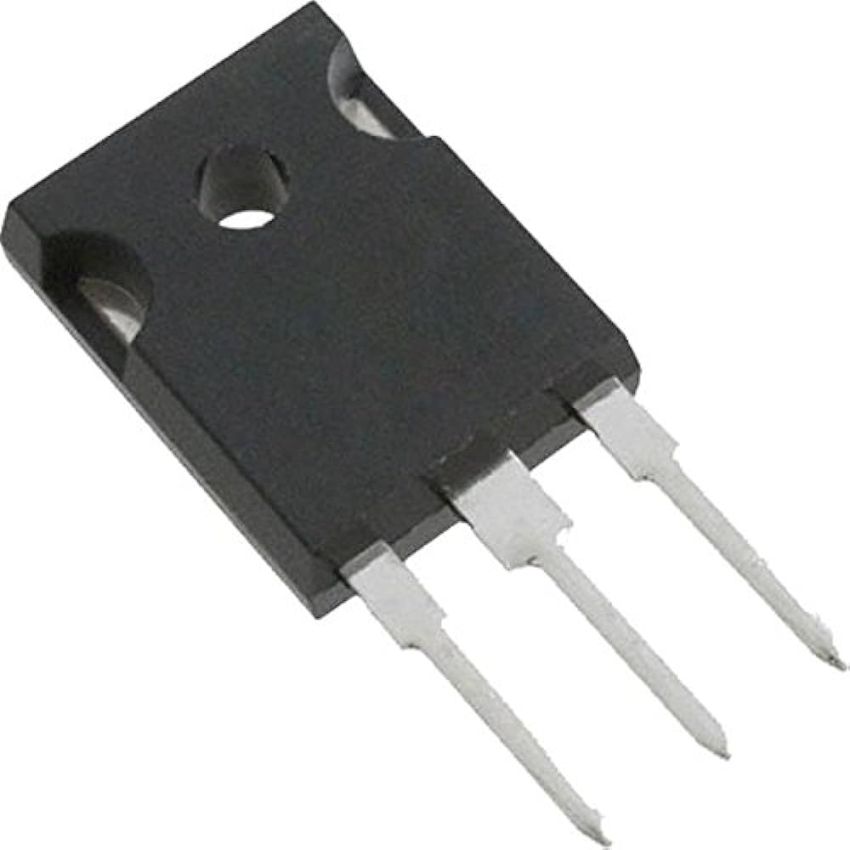

G4PC30KD,N-Channel IGBT,TO-247-3

The G4PC30KD is a high-speed N-channel Insulated Gate Bipolar Transistor (IGBT) designed for high-voltage power switching applications, including motor drives, induction heating, and power conversion circuits. With a collector-emitter voltage rating of 600V and a continuous collector current of 50A, this IGBT is well-suited for power electronics applications requiring high efficiency.

The low collector-emitter saturation voltage (V_CE(sat)) of 2.1V ensures minimal conduction losses, making it an energy-efficient solution. The G4PC30KD also features fast switching characteristics, reducing power dissipation in high-speed circuits.

Encased in a TO-247-3 package, the device provides excellent thermal management, allowing for reliable operation in high-power industrial environments. This IGBT is ideal for inverters, motor control systems, uninterruptible power supplies (UPS), and induction heating applications.

• High Voltage and Current Handling: Supports 600V collector-emitter voltage (V_CE) and 50A continuous collector current, ensuring efficient power switching.
• Low Conduction Loss: Features a V_CE(sat) of 2.1V, reducing energy dissipation during operation.
• Fast Switching Performance: Optimized for high-frequency applications with low turn-on and turn-off losses.
• Short-Circuit Capability: Designed to withstand high inrush currents, enhancing device protection.
• Efficient Power Dissipation: Rated for 166W power dissipation, providing thermal stability in demanding environments.
• TO-247-3 Package: Ensures superior heat dissipation for industrial and power electronics applications.
