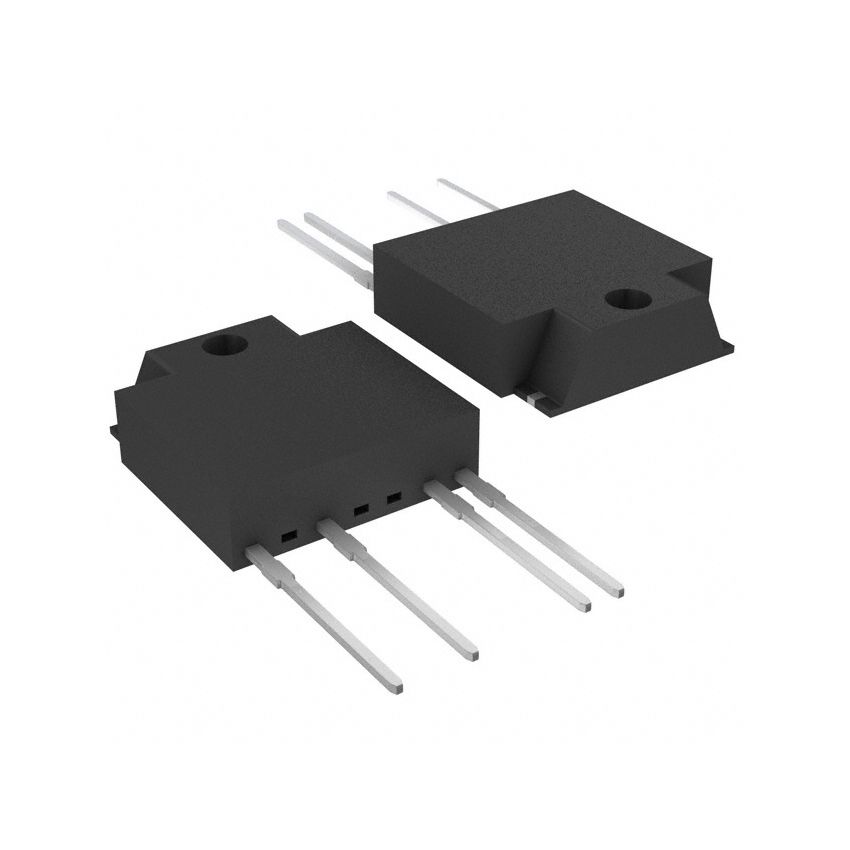

S202SE2, Solid State Relay with Zero-Cross Function, SIP-4

The S202SE2 is a medium-power AC solid-state relay from Sharp, designed for applications where compact size and electrical isolation are required. It includes a zero-cross detection circuit, which helps minimize EMI and surges during switching. The device is suitable for use in office equipment (copiers, laser printers), consumer electronics, and light industrial automation.

Key Features:

• Built-in Zero-Cross Circuit: Reduces electrical noise by switching at the AC zero-cross point.
• Medium Power Control: Handles up to 8 A RMS load current at 260V AC with heatsink.
• High Isolation Voltage: Offers up to 3000 V RMS input-to-output isolation.
• High Surge Capability: Can withstand surge currents up to 80 A (one cycle).
• Wide Operating Temperature Range: Operates from –25°C to +100°C, suitable for industrial environments.
• Compact SIP Package: Easy PCB mounting with a 4-pin inline configuration.

Additional Specifications:

• Type: Zero Cross Solid State Relay
• Number of Channels: 1
• Coil Voltage: 5-12Vdc
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 260Vac at 8A
