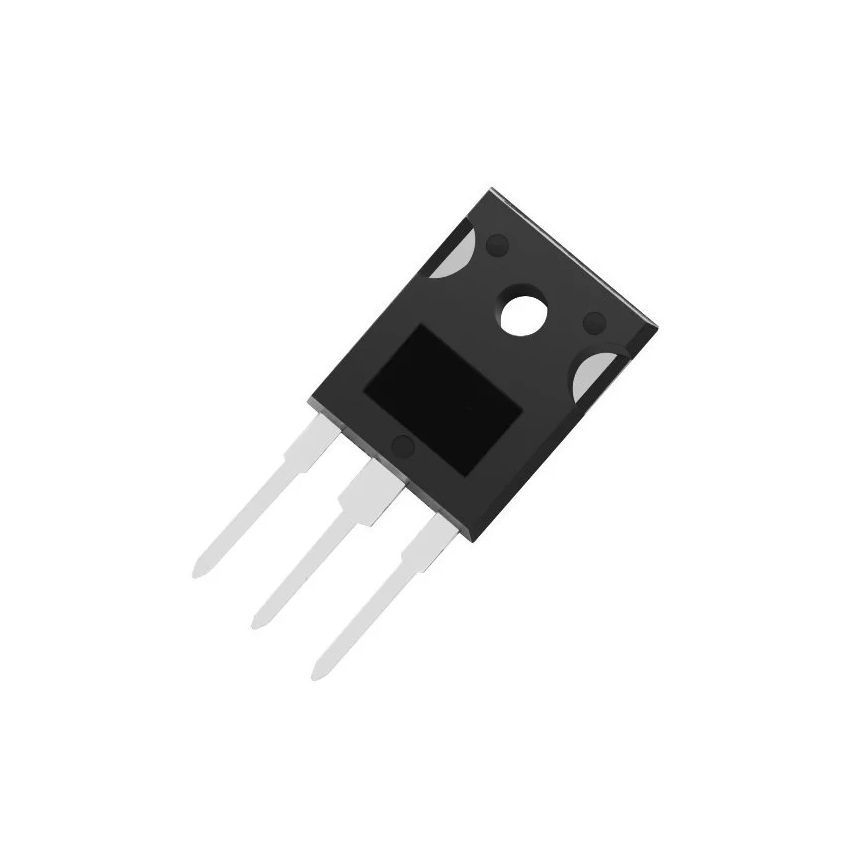

IKW40H1203, 1200V Trench-Stop IGBT with Soft Fast Recovery Diode, TO-247

The IKW40H1203 is a 1200V, 40A trench-stop IGBT designed for fast switching and high-efficiency operation in motor drives, UPS, inverters, and industrial power supplies. Featuring low V_CE(sat), soft switching characteristics, and robust avalanche and short-circuit performance, it is ideal for applications requiring high voltage and current switching with low losses. Q

Key Features:

• High Voltage Capability: Rated for up to 1200 V collector-emitter voltage.
• High Current Handling: Delivers 40 A continuous collector current at 25°C.
• Low V_CE(sat): Only 1.7 V at 25°C and 20A, improving efficiency.
• Integrated Fast Recovery Diode: Reduces switching losses in inverter and motor control circuits.
• Trench-Stop Technology: Minimizes tail current and switching losses.
• TO-247 Package: Offers excellent thermal performance for high-power designs.

Additional Specifications:

• Mounting Style: Through Hole
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 40A
• Power Dissipation: 312W
• Operating Temperature Range: -40+150°C
