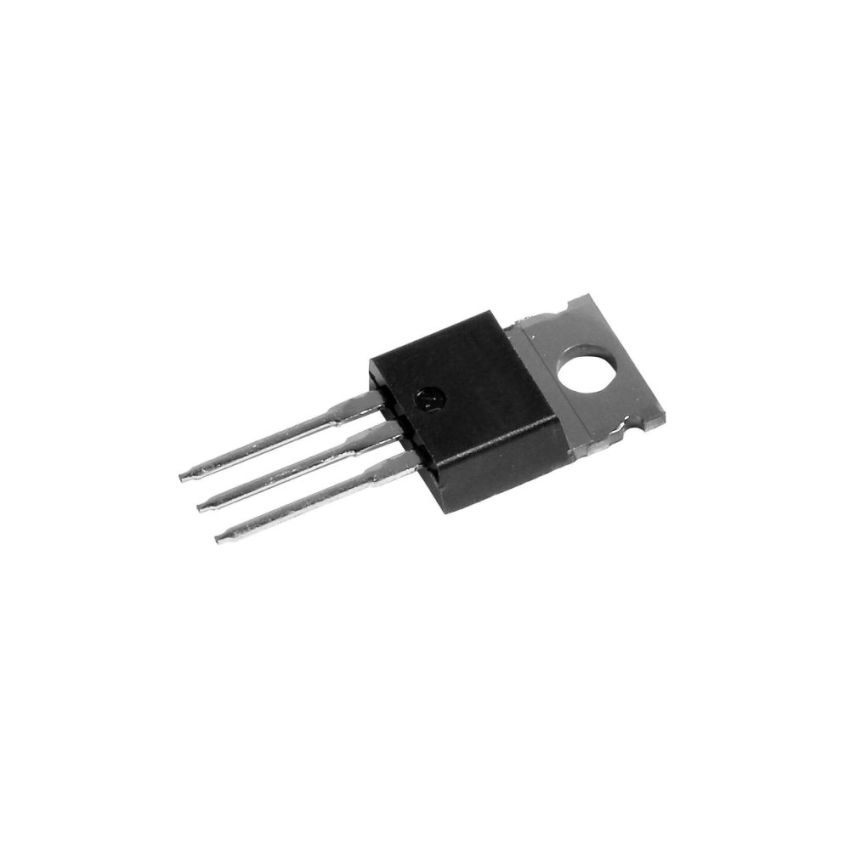

MUR1640CA,Ultrafast Recovery Rectifier,TO-220AB

The MUR1640CA is a high-performance ultrafast recovery rectifier designed for efficient AC-DC power conversion in switch-mode power supplies, inverters, and DC-DC converters. With a maximum peak reverse voltage of 400V and a continuous forward current of 16A, this rectifier is built to meet the demands of high-power applications.

Its ultrafast reverse recovery time of 35ns minimizes switching losses, making it suitable for high-frequency operations. The low forward voltage drop of 1.3V ensures high efficiency and reduced power loss during rectification.

Encased in a TO-220AB package, the MUR1640CA provides excellent thermal conductivity, allowing for reliable operation under heavy loads. With a maximum surge current rating of 175A, it offers robust protection against transient voltage spikes. Its wide operating temperature range from -55°C to +150°C makes it an ideal choice for use in industrial systems, power electronics, and renewable energy applications.

• High Voltage and Current Rating: Rated for 400V maximum peak reverse voltage (VRRM) and 16A continuous forward current (If) for reliable high-power applications.
• Ultrafast Recovery Time: Features a reverse recovery time of 35ns, making it suitable for high-frequency switching circuits.
• High Surge Tolerance: Withstands up to 175A peak forward surge current, ensuring robustness during transient conditions.
• Common Anode Configuration: Designed with a common anode structure for efficient AC-DC rectification.
• Compact and Durable Package: Encased in a TO-220AB package for efficient heat dissipation and easy mounting.
• Wide Operating Temperature Range: Operates reliably in temperatures from -55°C to +150°C, ensuring versatility in industrial and consumer applications.
