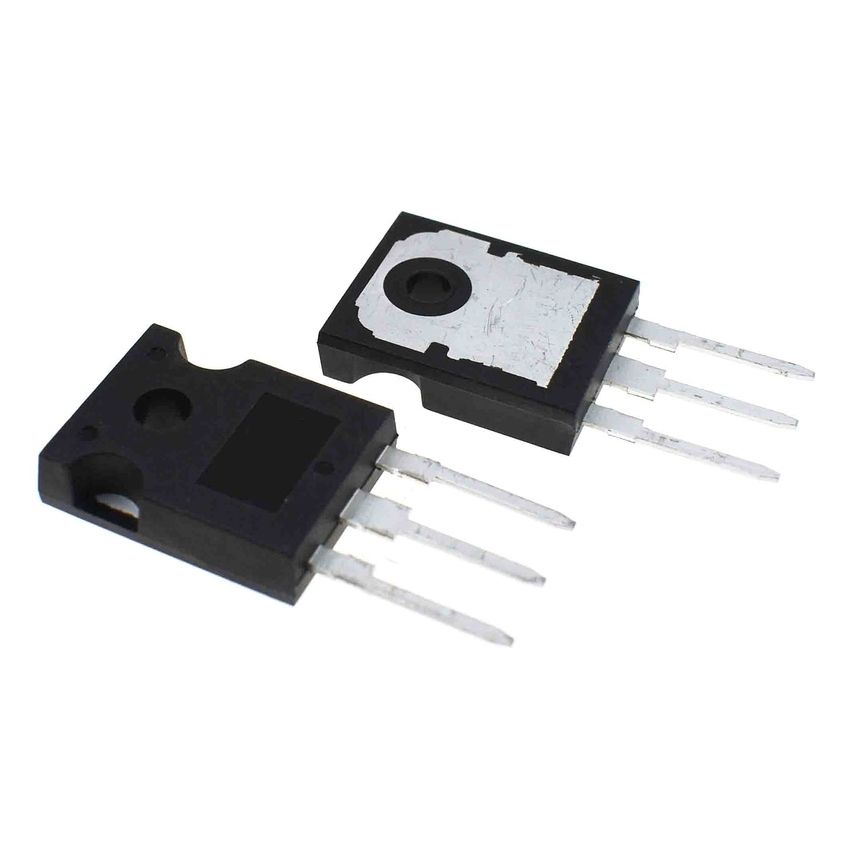

RJH60F7, 600V 90A N-Channel IGBT with Fast Recovery Diode, TO-247-3

The RJH60F7 is a high-performance N-Channel IGBT designed for demanding power applications. With its high voltage and current capabilities, integrated fast recovery diode, and fast switching performance, it is ideal for use in switching power supplies, motor drives, and other high-frequency applications. The device's robust thermal performance and standard TO-247-3 package ensure reliable operation in various environments.​

Key Features:

• High Voltage and Current Capability: Supports up to 600V Collector-Emitter Voltage and 90A Collector Current at 25°C.​
• Integrated Fast Recovery Diode: Enhances efficiency and reduces switching losses.​
• Low Saturation Voltage: Typical V_CE(sat) of 1.6V at 90A, reducing conduction losses.​
• Fast Switching Performance: Suitable for high-frequency applications with switching times as low as 48ns (turn-on) and 122ns (turn-off).​
• Robust Thermal Performance: Maximum power dissipation of 328.9W and operating junction temperature up to 150°C.​
• Standard TO-247-3 Package: Facilitates easy mounting and efficient heat dissipation.​

Additional Specifications:

• Mounting Style: Through Hole​
• Collector-Emitter Voltage (VCEO) : 600V
• Maximum Gate Emitter Voltage: 30V
• Continuous Collector Current at 25 C: 90A
• Power Dissipation: 328.9W
• Operating Temperature Range: -55+150°C
