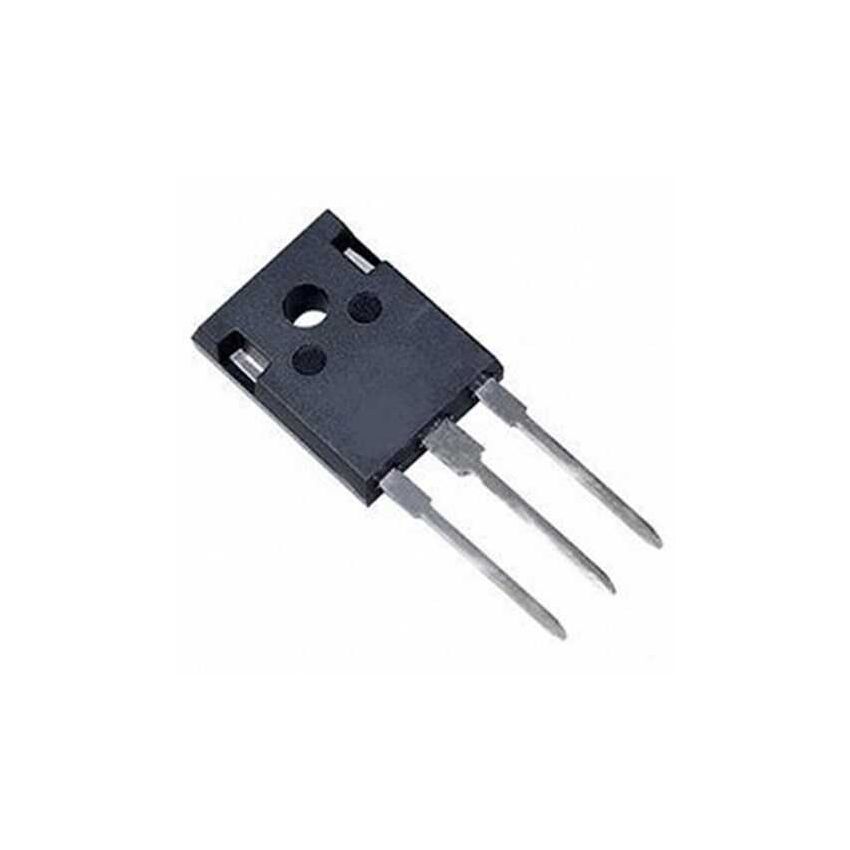

20LC20uST, Super Fast Recovery Diode - 200V ,20A, TO-247-3

The S20LC20UST Super Fast Recovery Diode is engineered to meet high-performance requirements in applications that demand rapid switching and minimal noise. This 200V, 20A diode is ideal for power applications, including switching regulators, flywheel diodes, and various industrial automation tasks. It features a low forward voltage drop, fast recovery time of just 25ns, and robust surge current capabilities, making it suitable for environments with high switching frequencies.

Key Features :

• High Current Rating: Supports continuous forward current up to 20A, providing reliability in power applications.
• Fast Recovery Time: 25ns recovery time, ideal for high-speed switching circuits, reducing switching losses.
• High Surge Capability: Capable of handling peak surge currents up to 150A, ensuring durability under varying load conditions.
• Low Forward Voltage Drop: Minimal forward voltage (0.96V at 10A) helps in reducing power loss.
• Reliable Thermal Performance: Low thermal resistance (1.2°C/W junction to case) aids in efficient heat dissipation.
• Wide Temperature Range: Operates in high-temperature environments, with a junction temperature up to 150°C.
