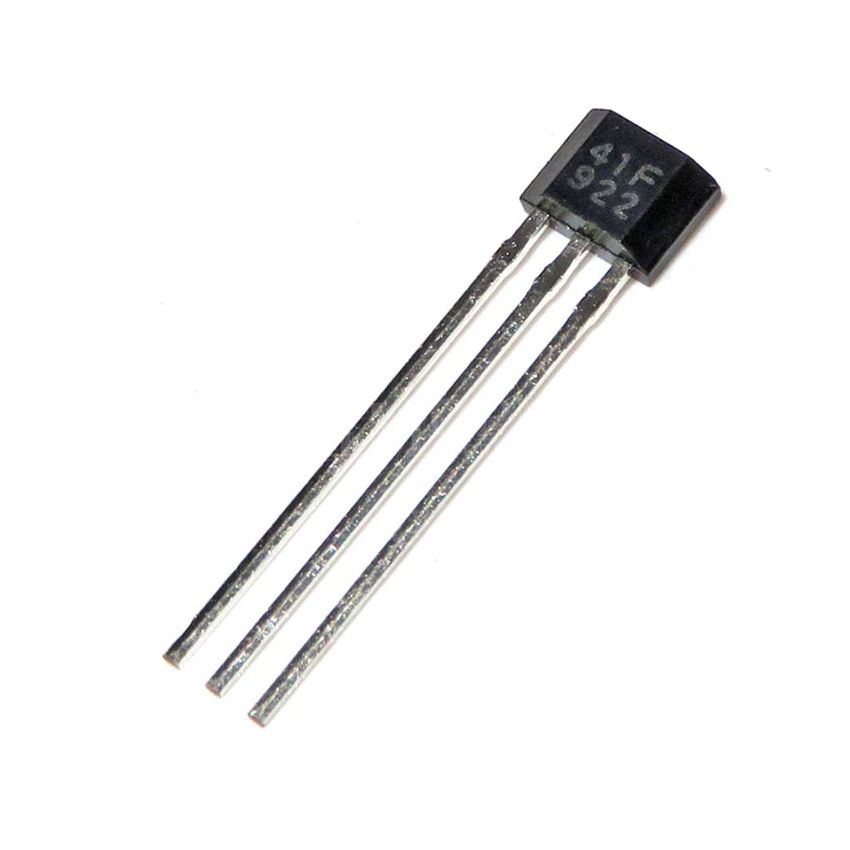

41F922, Hall-Effect Latch Sensor

The SS41F is a bipolar Hall-effect latch sensor designed for accurate position and speed sensing in various applications. It requires alternating magnetic fields (North and South poles) to change output states, making it ideal for detecting rotational or linear positions. Common uses include brushless DC motor commutation, speed measurement, and angular position detection.

Key Features:

• Wide Operating Voltage Range: Operates from 4.5V to 24V, accommodating various applications.
• Temperature Resilience: Functions effectively in temperatures ranging from -40°C to +150°C.
• Bipolar Latching Characteristics: Responds to alternating North and South magnetic poles for precise position sensing.
• Open-Collector Output: Capable of sinking up to 25 mA, facilitating easy interfacing with control systems.
• Compact Packaging Options: Available in SOT-23 and SIP-3 packages for design flexibility.
• Reverse Polarity Protection: Enhances durability against incorrect power connections.

Additional Specifications:

• Type: Bipolar Hall Effect Latch
• Operating Voltage: 4.5-24V
• Current Consumption: 6Ma
• Communication Interface: Open Collector Output
