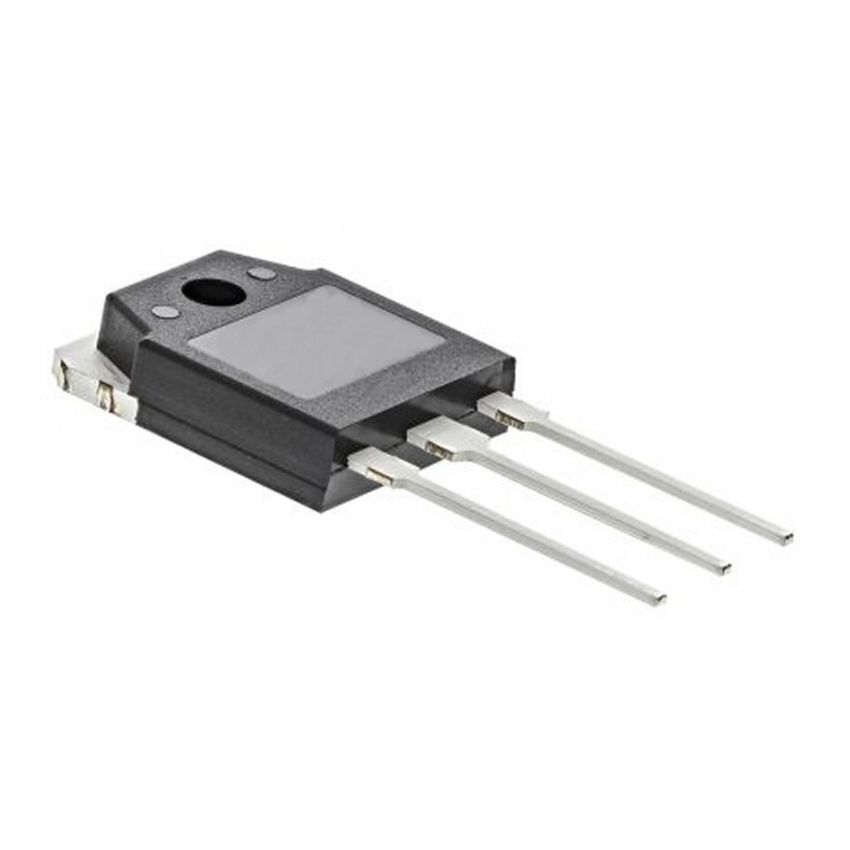

TIP140T,NPN Silicon Darlington Transistor - 80V,10A

TIP140T,NPN Silicon Darlington Transistor - 80V,10A

SKU
SCTx2747
Part Number
TIP140T
Brand:
Generic
Categories:
Semiconductors, Transistors, Darlington Transistors, Fairchild Semiconductor
Delivery in 2-5 Weeks.
Out of Stock
Be the first to review this product
Pre-Order
Out Of Stock
Add to Wish List

Notify me when this product is available:

Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The TIP140T is a high-performance NPN epitaxial silicon Darlington transistor designed for high-current gain applications. It features a monolithic construction with built-in base-emitter shunt resistors, making it ideal for industrial use and complementary configurations.

With a collector-emitter voltage rating of up to 80V and a collector current of 10A, this transistor is suitable for power control circuits, motor drives, and other industrial applications. The device comes in a TO-220 package, ensuring efficient heat dissipation.

Key Features :

  • High Current Gain: h_FE of 1000 at V_CE = 4V, I_C = 5A.
  • Collector-Emitter Voltage (V_CEO): 80V maximum.
  • Collector Current (I_C): 10A DC and 15A pulse.
  • Low Saturation Voltage: V_CE(sat) of 3V maximum at I_C = 5A.
  • Built-In Resistors: Includes base-emitter shunt resistors for improved performance.
  • Industrial-Grade Durability: Operating temperature range of -55C to 150C.
More Information
Brand Fairchild Semiconductor
GTIN 1,
Max Voltage N/A
