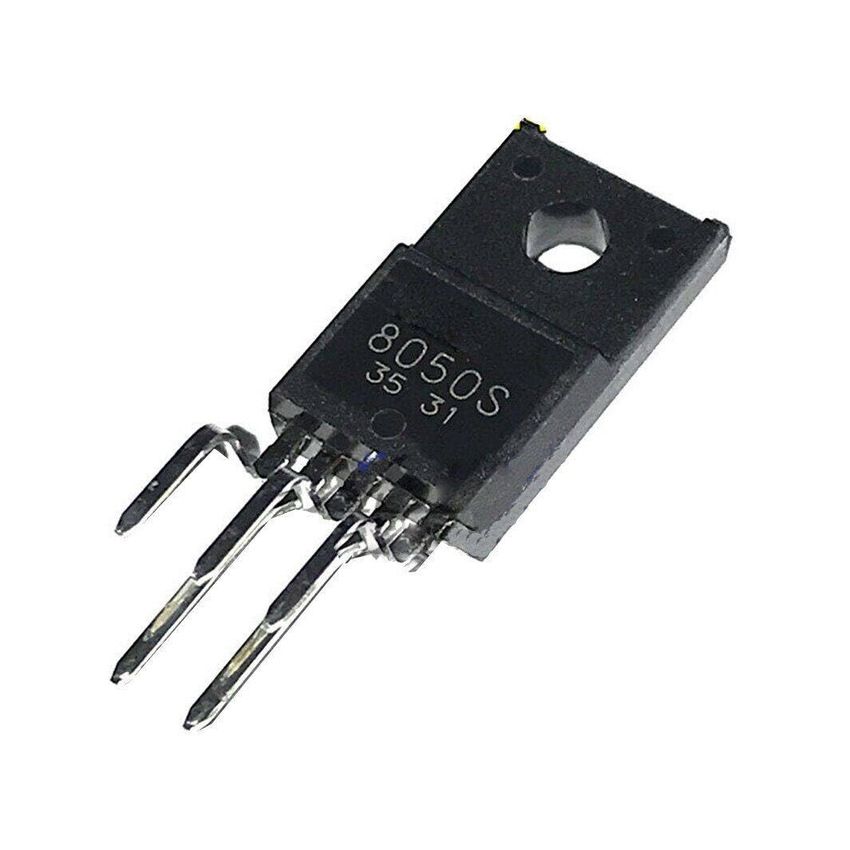

SK8050S, Single IGBT, 125W

The SK8050S is a high-performance single IGBT designed for applications requiring high voltage and current capabilities with fast switching speeds. Its low saturation voltage and robust design make it ideal for use in power supplies, motor controllers, and other high-power circuits.

Key Features:

• High Voltage Capability: Withstands collector-emitter voltages up to 600 V.
• High Current Handling: Supports continuous collector currents up to 24 A.
• Low Saturation Voltage: Exhibits a collector-emitter saturation voltage of 1.65 V, reducing conduction losses.
• Compact Package: Facilitates efficient thermal management and easy integration into various circuit designs.
• Fast Switching Performance: Suitable for high-frequency applications, enhancing overall system efficiency.
• Robust Design: Engineered for reliability in demanding power electronics applications.

Additional Specifications:

• Mounting Style: Through Hole
• Collector-Emitter Voltage (VCEO) : 600V
• Maximum Gate Emitter Voltage: ±20V
• Continuous Collector Current at 25 C: 24A
• Power Dissipation: 125W
• Operating Temperature Range: -40+150°C
