R711A, Standard Recovery Diode Array, TO-204AA (TO-3) Package

The R711A is a standard recovery diode array featuring two diodes in a common anode configuration. Each diode is capable of handling an average rectified current of 15A and can withstand a maximum reverse voltage of 100V. With a fast recovery time of 200ns, the R711A is suitable for various power rectification and switching applications. The robust TO-204AA (TO-3) package ensures excellent thermal management and mechanical stability, making it ideal for high-power applications.

• High Forward Current Capability: Each diode in the array supports an average rectified current of 15A, making it suitable for high-power applications.
• Moderate Reverse Voltage Rating: Withstands a maximum DC reverse voltage of 100V, suitable for various power rectification needs.
• Fast Recovery Time: Features a reverse recovery time of 200ns, allowing for efficient performance in switching applications.
• Low Forward Voltage Drop: Exhibits a forward voltage of 1.4V at 15A, ensuring efficient operation with minimal power loss.
• Common Anode Configuration: Simplifies circuit design by providing two diodes with a shared anode connection.

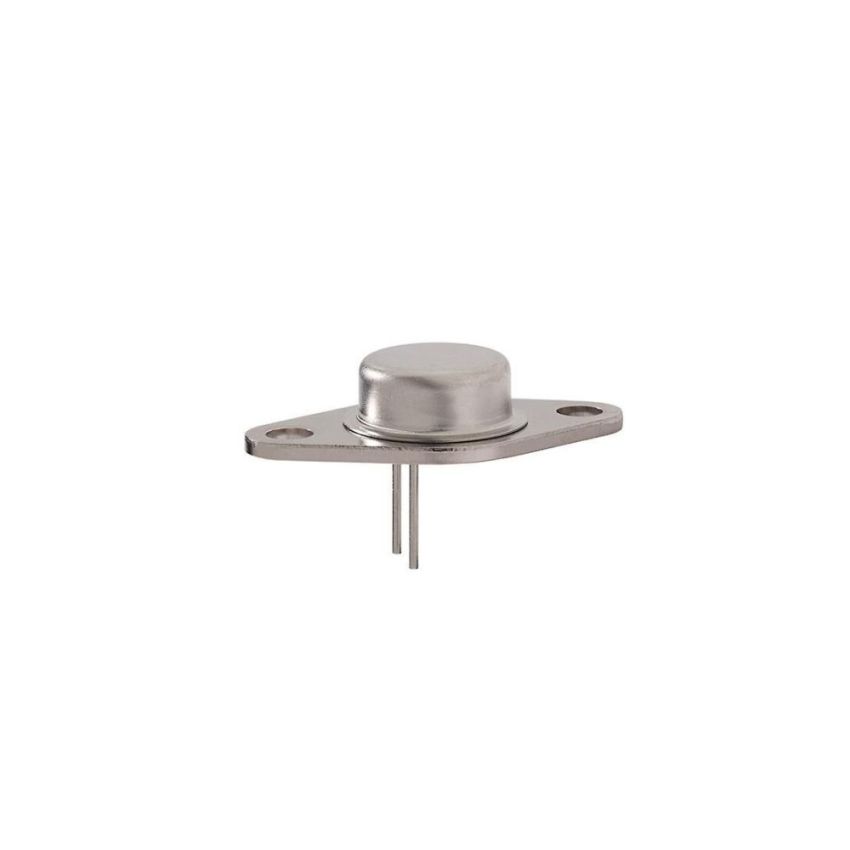

• Robust TO-204AA (TO-3) Package: Offers excellent thermal performance and mechanical durability, suitable for demanding environments.
