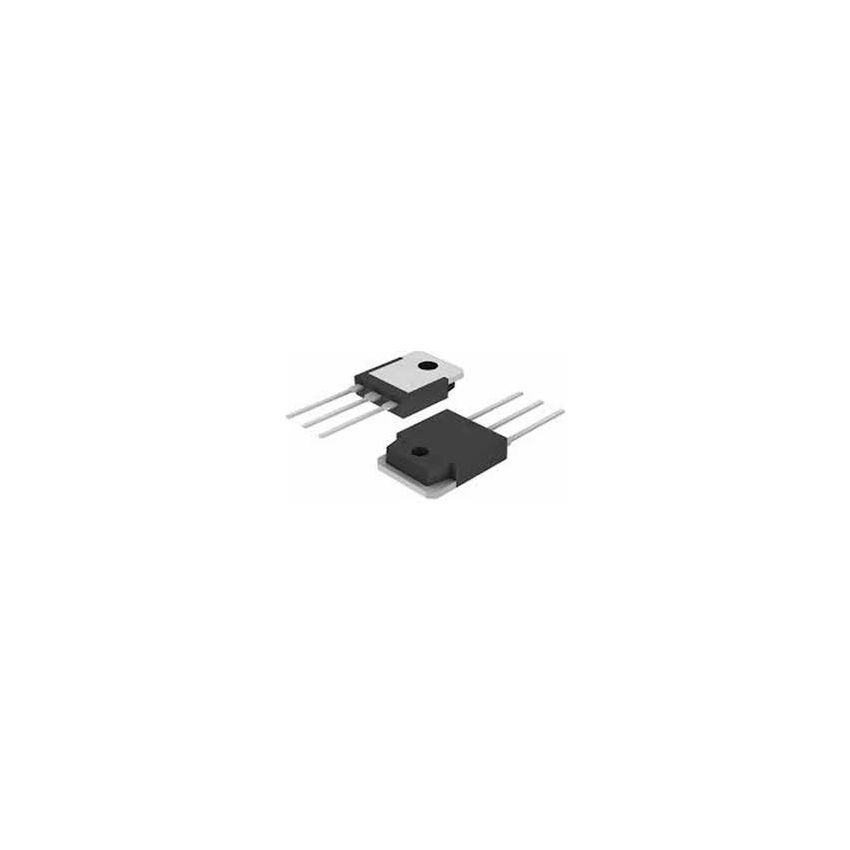

FFH60UP60S Ultrafast Recovery Power Rectifier

The FFH60UP60S is an ultrafast recovery diode (UFRD) featuring a soft recovery characteristic and low forward voltage drop. It is engineered specifically to reduce switching losses in high-frequency power conversion systems. Because of its 600-Volt and 60-Ampere rating, it is a critical component for high-power applications such as switch-mode power supplies (SMPS), welding equipment, and induction heating. This diode is commonly used as a freewheeling diode or output rectifier where high-speed switching is essential to maintain efficiency. Its "soft" recovery nature helps minimize electromagnetic interference (EMI) and voltage ringing in the circuit. The TO-247 package ensures that the device can be securely mounted to a large heat sink to manage the thermal output generated during high-current rectification tasks.

Key Features:

Average rectified forward current (IF(AV)) of 60 Amperes.

Extremely fast reverse recovery time (trr) typically 50 Nanoseconds.

Low forward voltage drop (VF) typically 1.4 Volts at 60 Amperes.

Avalanche energy rated for high-stress reliability.

TO-247 (TO-3P) plastic package for effective thermal dissipation.
