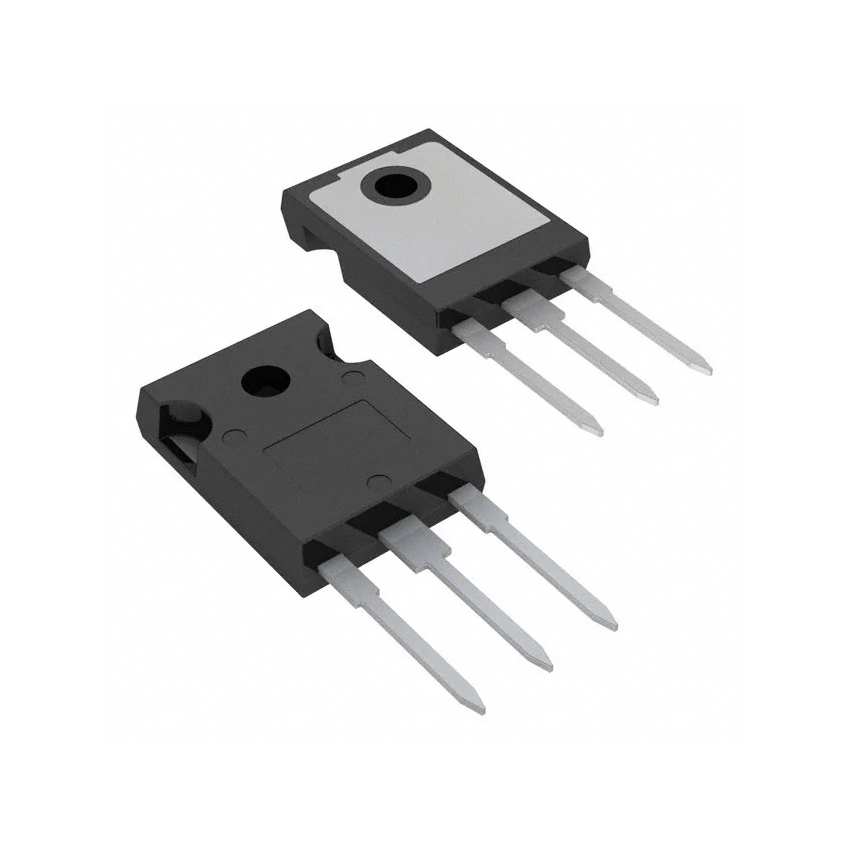

IRFP4868PBF N-Channel Power MOSFET

The IRFP4868PBF is a high-performance N-channel HEXFET power MOSFET designed for high-voltage, high-speed switching applications. It is particularly effective in systems requiring high efficiency and reliability, such as primary-side switches in switch-mode power supplies (SMPS), uninterruptible power supplies (UPS), and high-power DC-DC converters. With its 300-Volt rating and massive 517-Watt power dissipation capability, it provides a robust solution for industrial motor drives and solar inverters. The "PBF" suffix indicates that the device is lead-free and compliant with RoHS standards. Its low on-state resistance minimizes heat generation during conduction, while the TO-247 package allows for excellent thermal coupling to a heat sink, ensuring the device remains stable even under the most demanding current loads.

Key Features:

Continuous drain current (ID) capability of 70 Amperes at 25 degrees Celsius.

Very low drain to source on-state resistance (RDSon) of 25.5 Milliohms.

High repetitive avalanche capability for circuit ruggedness.

Fast switching and low gate charge (Qg) for high-frequency efficiency.

Standard TO-247 package with high power dissipation of 517 Watts.
