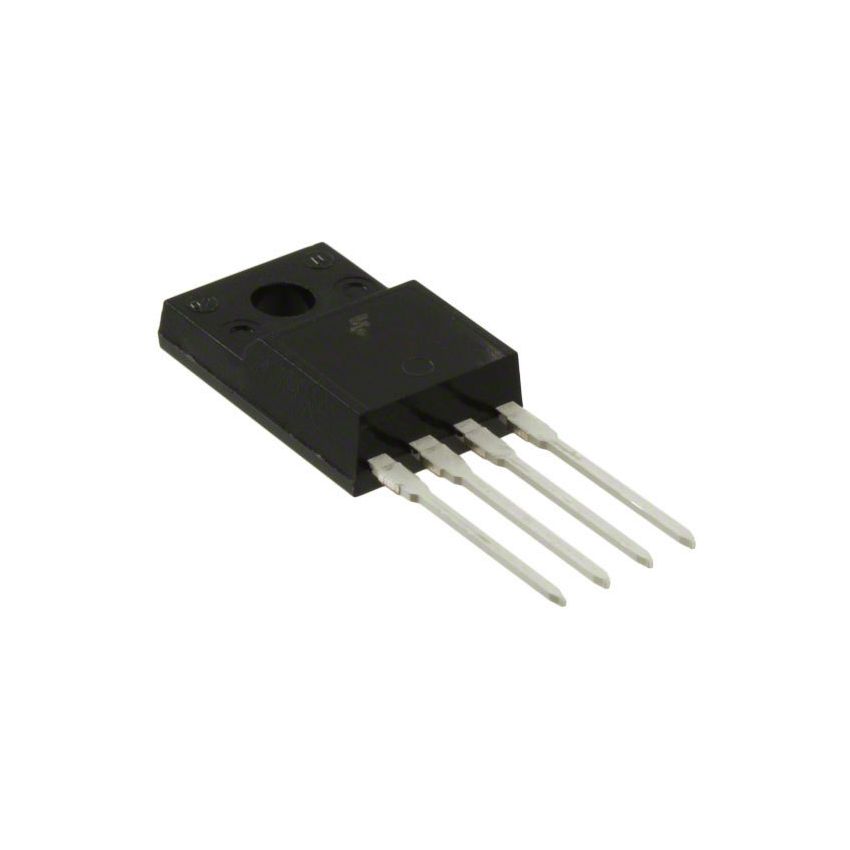

KA5L380R Fairchild Power Switch (FPS)

The KA5L380R is an integrated power management IC part of the Fairchild Power Switch (FPS) family, specifically designed for off-line switch-mode power supplies (SMPS). It combines a robust 800V SenseFET with a current-mode PWM controller, allowing for high-efficiency power conversion with a very low external component count. This device includes essential protection features such as under-voltage lockout (UVLO), thermal shutdown, and over-load protection, which enhance system reliability. It is commonly found in power supplies for consumer electronics like VCRs, set-top boxes, and DVD players, as well as adapters for camcorders and printers. The insulated TO-220F package is particularly useful because it eliminates the need for an additional insulating washer when mounting the device to a heat sink.

Key Features:

Continuous drain current (ID) of 3.0 Amperes at 25 degrees Celsius.

Precision fixed operating frequency of 50 Kilohertz.

Low start-up current typically around 100 Microamperes.

Pulse-by-pulse current limiting and over-voltage protection (min 25V).

Fully insulated TO-220F-4L package for simplified mounting.
