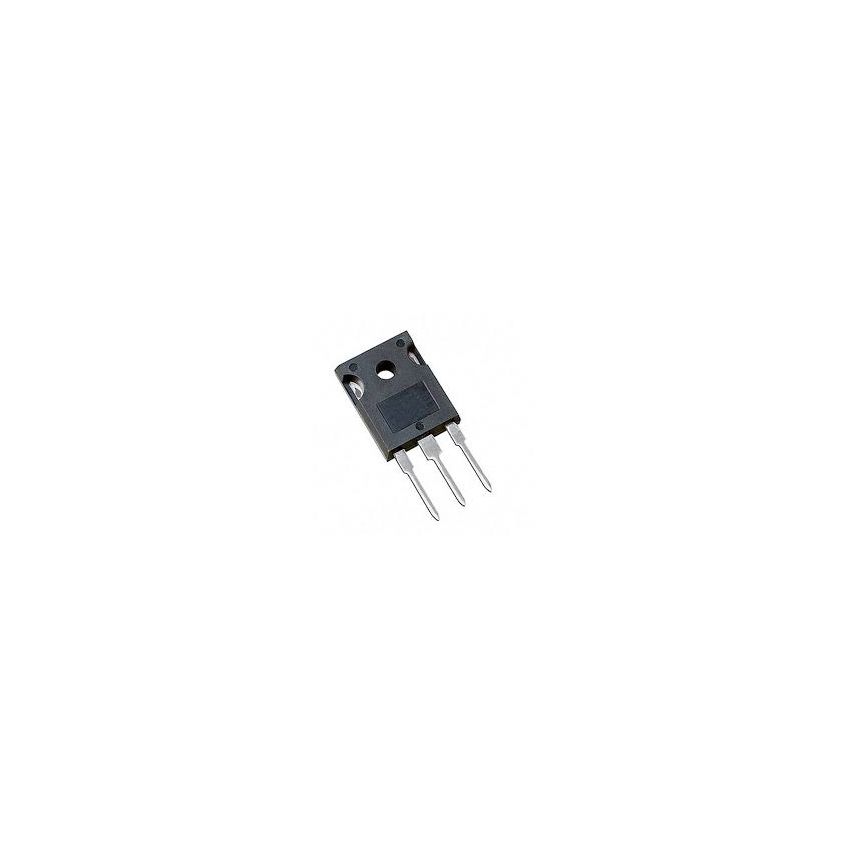

IRFPE50 N-Channel Power MOSFET

The IRFPE50 is a high-voltage N-channel enhancement mode power field-effect transistor (MOSFET) designed for efficient switching and power conversion. It is particularly well-suited for high-voltage applications such as switch-mode power supplies (SMPS), motor controls, and uninterruptible power supplies (UPS). With an 800-Volt rating, it provides a significant safety margin for circuits operating on high-voltage AC mains or industrial power lines. The device features a rugged design that can withstand high energy pulses and is avalanche-rated for increased reliability. Its TO-247AC package is designed to handle high power levels by providing a large surface area for heat sink attachment, ensuring stable performance during continuous high-load operation.

Key Features:

Continuous drain current (ID) of 7.8 Amperes at 25 degrees Celsius.

Low drain to source on-state resistance (RDSon) of 1.2 Ohms.

High power dissipation rating (PD) of 190 Watts.

Low gate charge (Qg) for simplified drive requirements.

Large TO-247AC (TO-3P) package for superior thermal management.
