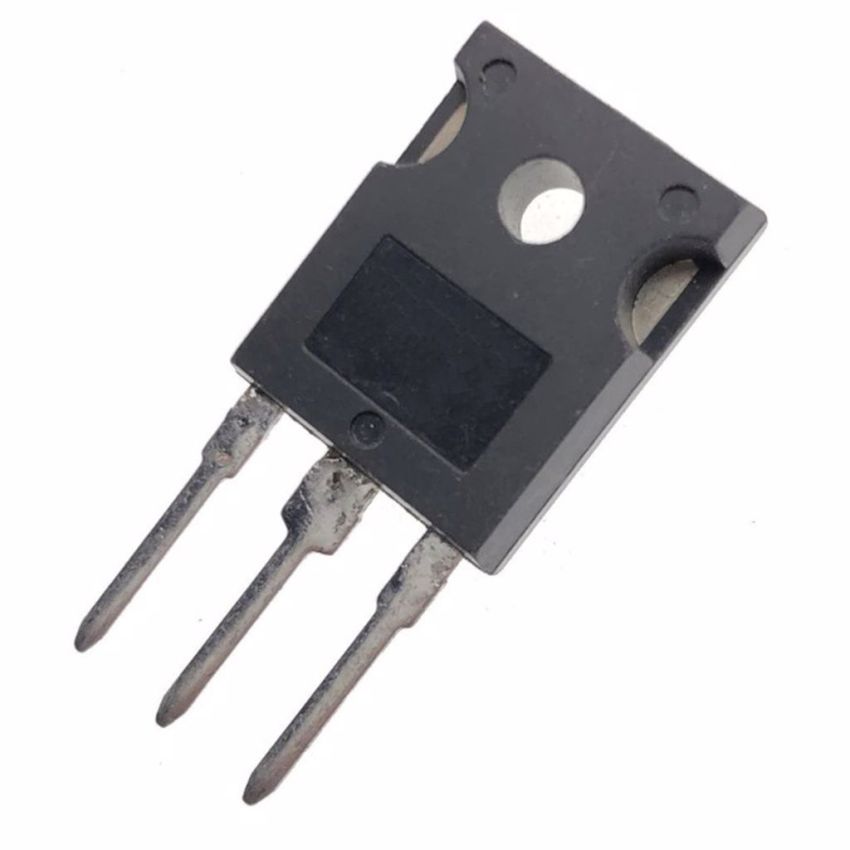

SGW50N60HS ,IGBT Transistor, 600V, 50A, TO-247-3 Package

The SGW50N60HS is a high-speed IGBT transistor manufactured by Infineon. It operates at a collector-emitter voltage of 600V and supports a continuous collector current of up to 50A, with pulsed currents reaching 150A.

The device utilizes advanced NPT (Non-Punch-Through) technology to offer superior performance in switching applications that operate at high frequencies above 30 kHz. It is designed to withstand short-circuit conditions for up to 10 µs, providing high reliability in demanding applications such as motor control systems, solar inverters, and UPS systems. The SGW50N60HS comes in a rugged TO-247-3 package, ensuring efficient thermal management and durability, making it ideal for high-power applications.

Key Features :

• High Voltage Capability: 600V collector-emitter breakdown voltage.
• High Current Handling: Supports 50A continuous collector current and up to 150A pulsed collector current.
• Efficient Switching: Optimized for high-frequency applications (over 30 kHz) with low switching losses.
• Short-Circuit Withstand: Withstands short circuits for up to 10 µs, enhancing reliability in critical systems.
• Rugged NPT Technology: Offers excellent thermal stability and robust switching performance.
• TO-247-3 Package: Provides superior thermal dissipation and supports heavy-duty industrial applications.
