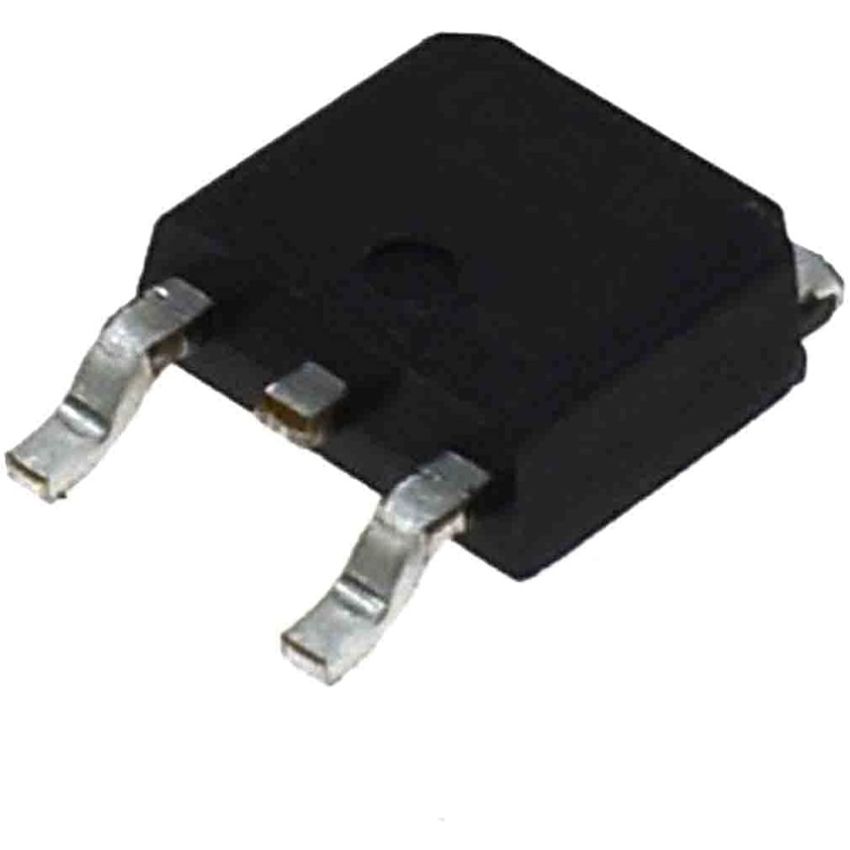

NGD8201AG, N-Channel IGBT, DPAK (TO-252)

The NGD8201AG is an N-channel logic level IGBT designed for high-voltage, high-speed switching applications. It integrates monolithic circuitry that provides ESD protection and overvoltage clamping, making it particularly suitable for inductive coil drivers in automotive ignition systems and direct fuel injection applications. Its low gate threshold voltage allows for easy interfacing with microcontrollers and other logic-level devices.

Key Features:

• High Voltage Capability: Withstands collector-emitter voltages up to 440V.
• Moderate Current Handling: Supports continuous collector currents up to 20A.
• Integrated Protection: Features built-in ESD and overvoltage clamping for enhanced reliability.
• Logic Level Gate Drive: Operates with gate-emitter voltages as low as 4.5V, facilitating direct interfacing with logic circuits.
• Fast Switching Speeds: Optimized for rapid turn-on and turn-off times, suitable for high-frequency applications.
• Compact DPAK Package: Surface-mount design ideal for space-constrained applications.

Additional Specifications:

• Mounting Style: Surface Mount
• Collector-Emitter Voltage (VCEO) : 440V
• Maximum Gate Emitter Voltage: 20A
• Continuous Collector Current at 25 C: 15V
• Power Dissipation: 125W
• Operating Temperature Range: -55+175°C
