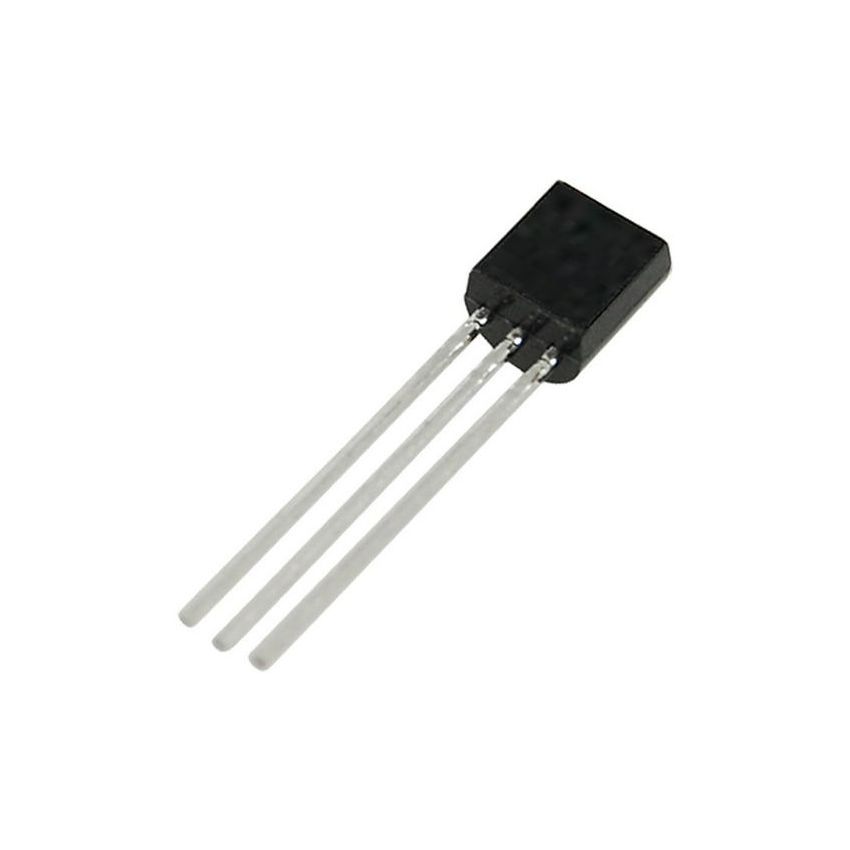

2SA684, PNP Silicon Epitaxial Planar Transistor, TO-92L

The 2SA684 is a PNP silicon epitaxial planar transistor housed in a TO-92L package. It is specifically designed for low-frequency power amplification and driver applications. This transistor is complementary to the 2SC1383 and 2SC1384, making it ideal for push-pull configurations in audio amplification circuits. The device supports automatic insertion by radial taping, which enhances manufacturing efficiency. With a DC current gain ranging from 85 to 340, the 2SA684 ensures efficient signal amplification. Its moderate power dissipation capability of up to 1 W makes it suitable for various low-power applications.

• Low-Frequency Power Amplification: Designed for low-frequency power amplification and driver applications.
• Complementary Pairing: Complementary to 2SC1383 and 2SC1384, facilitating push-pull configurations.
• Automatic Insertion Compatibility: Suitable for automatic insertion by radial taping, enhancing manufacturing efficiency.
• High DC Current Gain: Offers a DC current gain (h_FE) range of 85 to 340, ensuring efficient amplification.
• Moderate Power Dissipation: Capable of dissipating up to 1 W, suitable for various low-power applications.
• Standard TO-92L Package: Compact and widely used package type, ensuring ease of integration into circuit designs.
