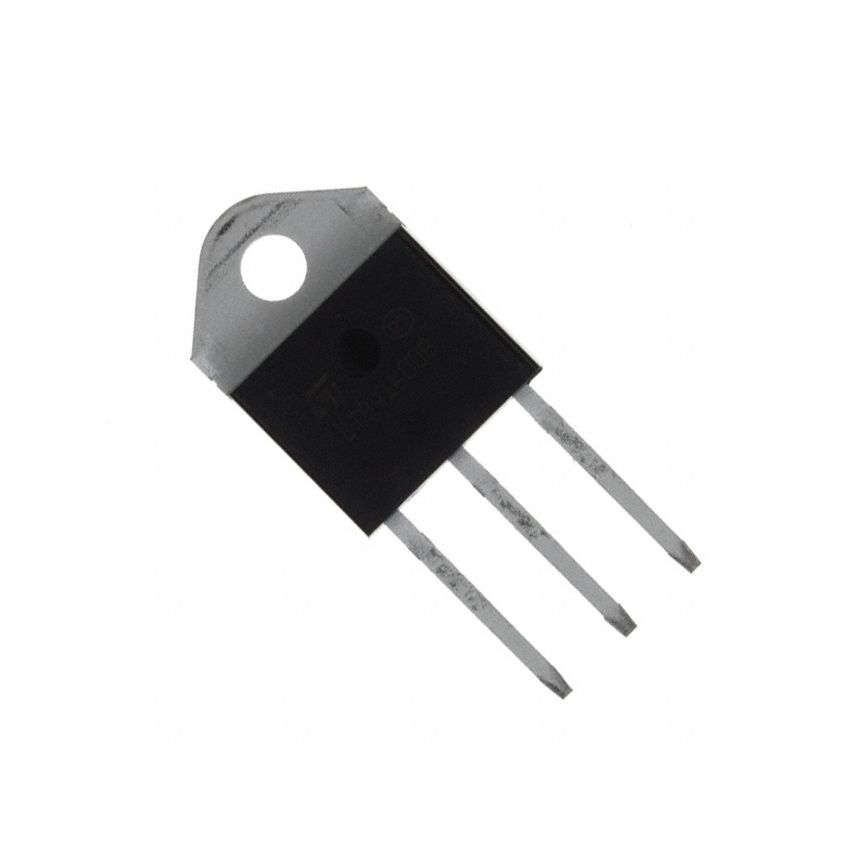

BTW69-600, 600V SCR, TO-247-3

The BTW69-600 is a high-power SCR designed for switching and control applications such as motor drivers, solid-state relays, and welding equipment. Engineered using STMicroelectronics’ clip-assembly technology, it combines high surge handling with excellent thermal performance. Its insulated TO-247 package ensures safe, compact mounting in high-power industrial applications.

Key Features:

• High Surge Current Capability: Handles up to 610A (non-repetitive) surge current.
• High Voltage Rating: Withstands repetitive peak off-state voltages up to 600V.
• Robust 50A RMS On-State Current: Supports high continuous load currents.
• Insulated Package: Features internal ceramic insulation (2,500 VRMS dielectric).
• UL Compliant: Meets international insulation safety standards.
• Reliable Clip Assembly Design: Enhances thermal and mechanical reliability.

Additional Specifications:

• Mounting Style: Through Hole
• Gate Trigger Voltage (Vgt): 1.3V
• Gate Trigger Current (Igt): 80Ma
• Non repetitive surge peak on-state current (ITSM): 610A
• Operating temprature Range: -40+125°C
• Rated Repetitive Off-State Voltage (VDRM): 600V
