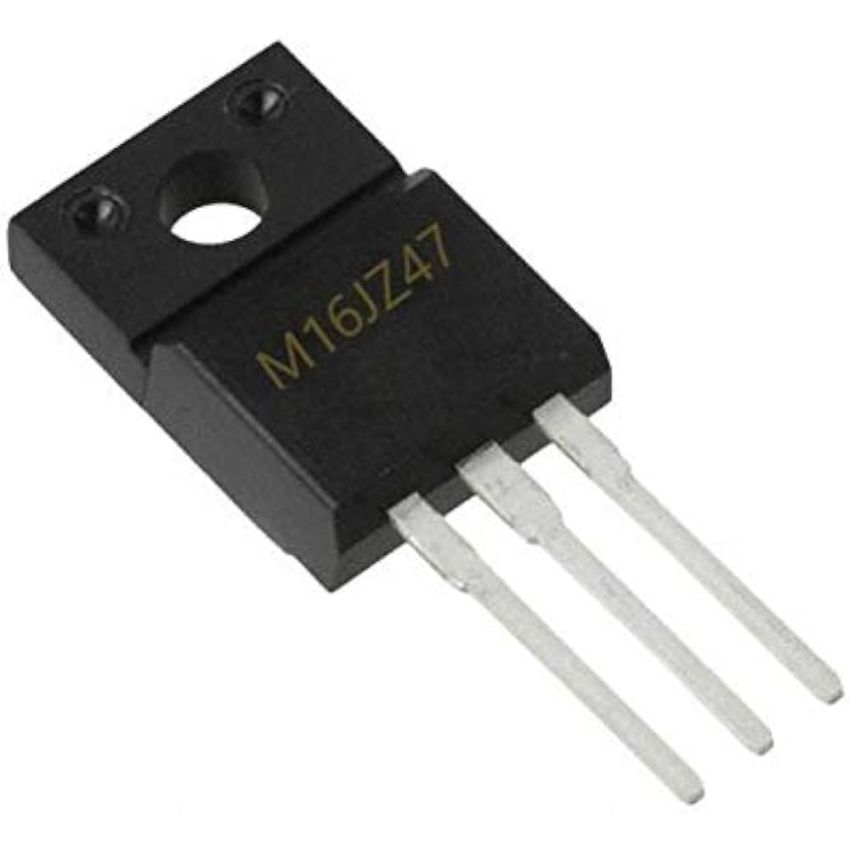

M16JZ47,Thyristor,TO-220,600V,16A

The M16JZ47 Thyristor by Toshiba is a high-performance silicon planar type designed specifically for AC power control applications. Featuring a repetitive peak off-state voltage of 600V and an RMS on-state current capability of 16A, this thyristor is ideal for a variety of industrial applications including motor speed control, dimmer circuits, and other power control tasks. It can handle non-repetitive peak surge currents up to 165A at 60Hz, making it resilient under high load conditions. The device also offers a wide operating temperature range from -40°C to 125°C, ensuring stability across diverse environments. Its high isolation voltage of 1500V AC enhances operational safety, making it a reliable choice for power-intensive applications.

• High Repetitive Peak Off-State Voltage: 600V, allowing reliable performance in high-voltage applications.
• Robust RMS On-State Current: Rated at 16A, ideal for demanding power control tasks.
• Non-Repetitive Surge Capability: Can handle up to 165A peak surge current (60Hz), suitable for overload conditions.
• Wide Operating Temperature Range: Operates efficiently from -40°C to 125°C, suitable for varied environments.
• High Isolation Voltage: Ensures 1500V AC isolation for enhanced safety in power electronics.
• Optimized for AC Power Control: Excellent for applications in motor speed controllers, dimmers, and AC switching systems.
