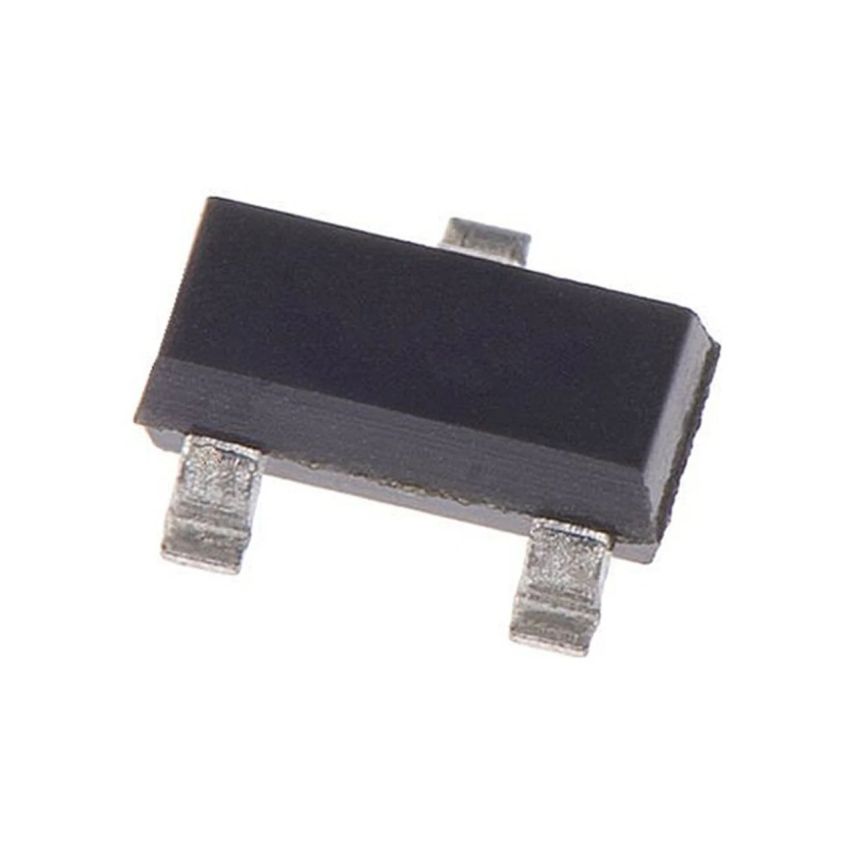

BSH205, P-Channel Logic-Level MOSFET, SOT-23

The BSH205 is a low-threshold, high-speed P-channel enhancement-mode MOSFET optimized for switching and load control in battery-operated and logic-level applications. Housed in a compact SOT-23 package, it offers excellent efficiency and switching performance, with very low on-resistance and gate charge characteristics suitable for high-speed logic interfaces and power control.

Key Features:

• Logic-Level Drive: Operates with gate voltages as low as -1.8V to -2.5V.
• Fast Switching: Turn-on delay as low as 2 ns, ideal for high-speed applications.
• Low R_DS(on): As low as 0.18 Ω at V_GS = -4.5 V.
• Compact SOT-23 Package: Space-saving surface-mount form factor.
• Low Gate Charge: Total gate charge of 3.8 nC supports fast switching speeds.
• Optimized for Battery and Digital Circuits: Ideal for portable and low-voltage logic systems.

Additional Specifications:

• Mounting Style: Surface-Mount
• Continuous Current Drain (Id): -0.75A
• Drain-Source Breakdown Voltage (Vds): -12V
• Gate-Source Threshld Voltage (Vgs th): -0.4-0.68V
• Power Dissipation: 417Mw
• Operating Temprature: -55+150°C
