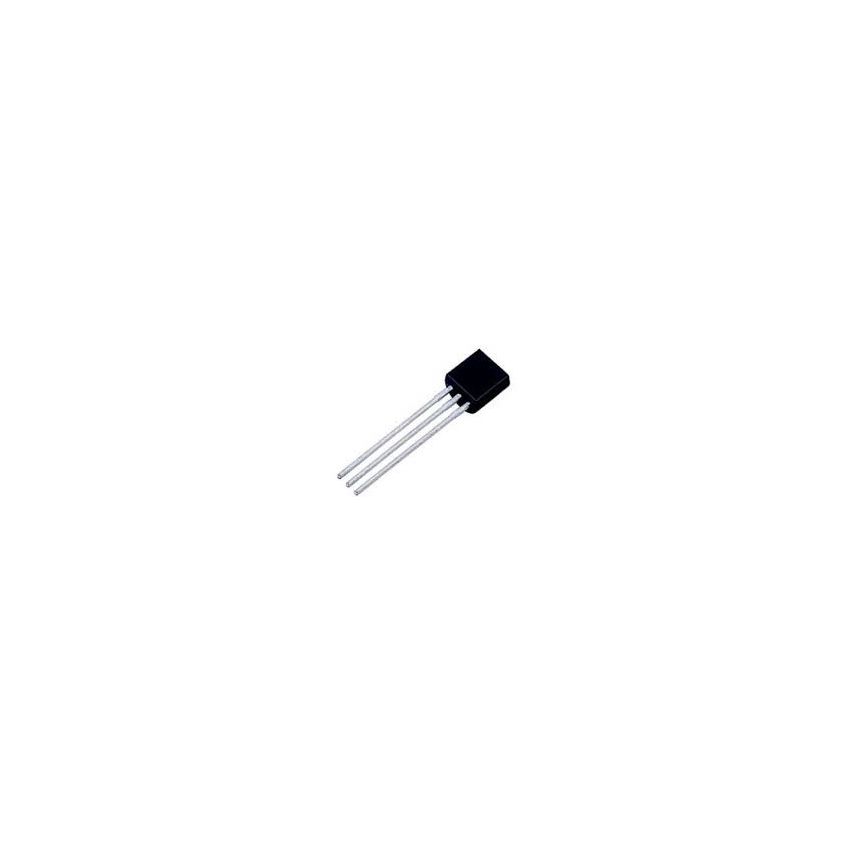

2SK304, N-Channel Junction FET (JFET), TO-92

The 2SK304 is a small signal N-channel junction field-effect transistor (JFET), designed for applications requiring high input impedance, low noise, and stable performance. It’s especially suited for audio-frequency preamps and signal amplifiers. With low gate current and high drain resistance, it's a go-to part in many analog designs.

Key Features:

• Low Noise JFET: Ideal for preamplifier stages and audio applications.
• High Input Impedance: Minimizes signal loading.
• Low Gate Leakage: Ensures signal integrity in high-impedance circuits.
• Fast Switching Time: Useful for signal processing and RF applications.
• TO-92 Package: Compact through-hole format for prototyping and production.
• Wide Use Case: Found in audio equipment, measurement instruments, and analog switch circuits.

Additional Specifications:

• Mounting Style: Through Hole
• Continuous Current Drain (Id): 10Ma
• Drain-Source Breakdown Voltage (Vds): 25V
• Gate-Source Threshld Voltage (Vgs th): -0.5-6V
• Power Dissipation: 300Mw
• Operating Temprature: -55+125°C
