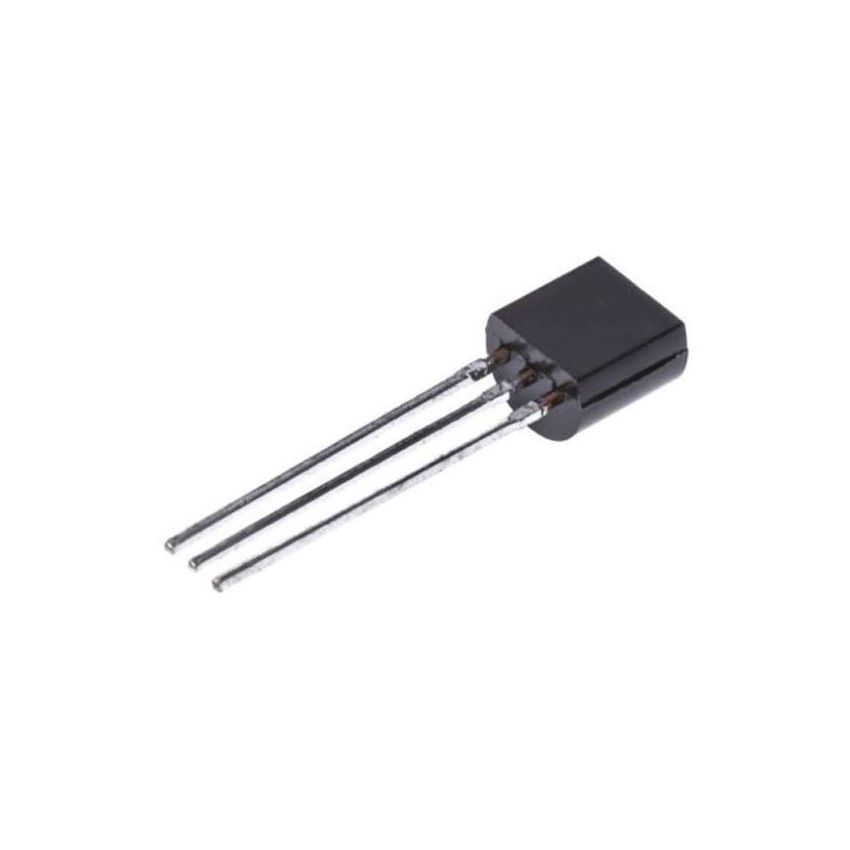

2N7000, N-Channel Enhancement Mode MOSFET, TO-92

The 2N7000 is a general-purpose N-channel MOSFET designed for low-power switching applications. It provides reliable performance with up to 60V drain-source capability and is commonly used in digital electronics, signal control, and low-voltage switching tasks. Its TO-92 package makes it easy to use in breadboards and through-hole assemblies.

Key Features:

• Low Threshold Drive: Operates from standard logic levels.
• Moderate Voltage Rating: Drain-source voltage rated at 60V.
• Low On-Resistance: R_DS(on) as low as 1.8Ω at V_GS = 10V.
• Logic-Level Compatible: Suitable for digital circuits and microcontroller interfacing.
• Compact TO-92 Package: Ideal for breadboards, prototyping, and low-power applications.
• Low Gate Charge: Allows for fast switching and reduced gate drive requirements.

Additional Specifications:

• Mounting Style: Through Hole
• Continuous Current Drain (Id): 0.35A
• Drain-Source Breakdown Voltage (Vds): 60V
• Gate-Source Threshld Voltage (Vgs th): 1-3V
• Power Dissipation: 1W
• Operating Temprature: -55+150°C
