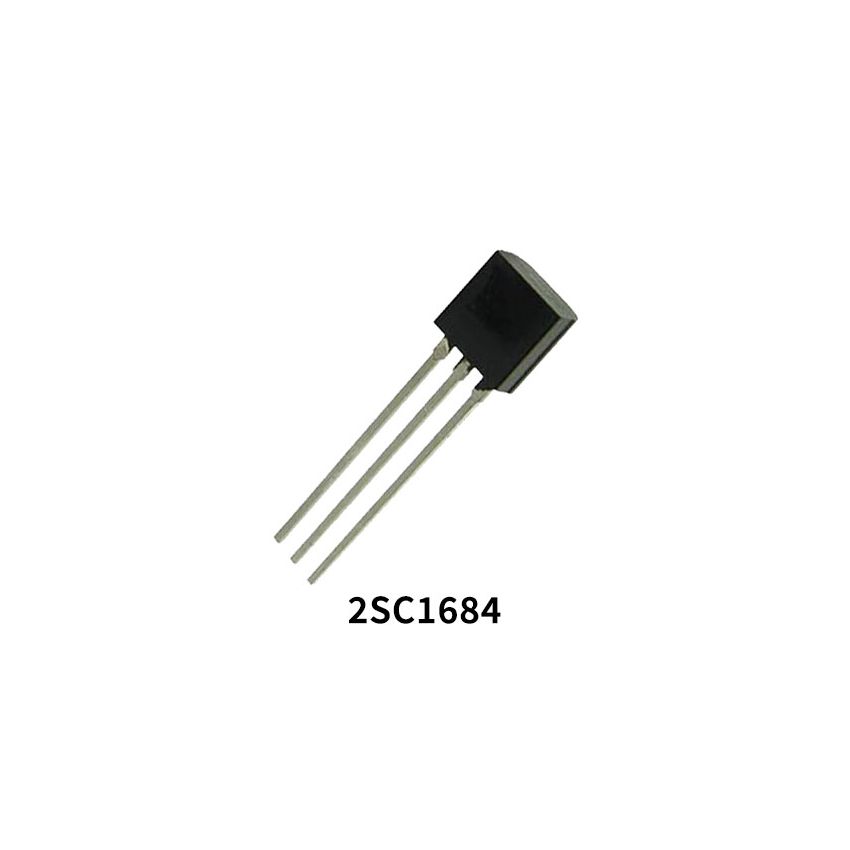

2SC1684, NPN Silicon Transistor, TO-92 Package, 25V Vce, 100mA Ic

The 2SC1684 is a high-performance NPN silicon transistor housed in a TO-92 plastic package, ideal for general-purpose amplification and switching applications. This transistor offers low Vce(sat) and high hFE, ensuring efficient operation in small-signal circuits. With a maximum collector-emitter voltage (Vce) of 25V, a continuous collector current (Ic) of 100mA, and a power dissipation of 400mW, the 2SC1684 is designed to deliver reliable performance across a wide range of applications.

Key Features :

• Compact Design: Housed in a TO-92 package for space-saving, through-hole applications.
• High Current Gain (hFE): Ensures efficient signal amplification with a gain range of 160-460.
• Low Vce(sat): Reduces power loss during operation, making it energy-efficient.
• High Transition Frequency (fT): 150 MHz for fast switching in high-frequency applications.
• Wide Operating Temperature Range: Operates reliably from -55C to 150C, ideal for demanding environments.
• General-Purpose Applications: Suitable for amplifiers, low-power switches, and other small-signal circuits.
