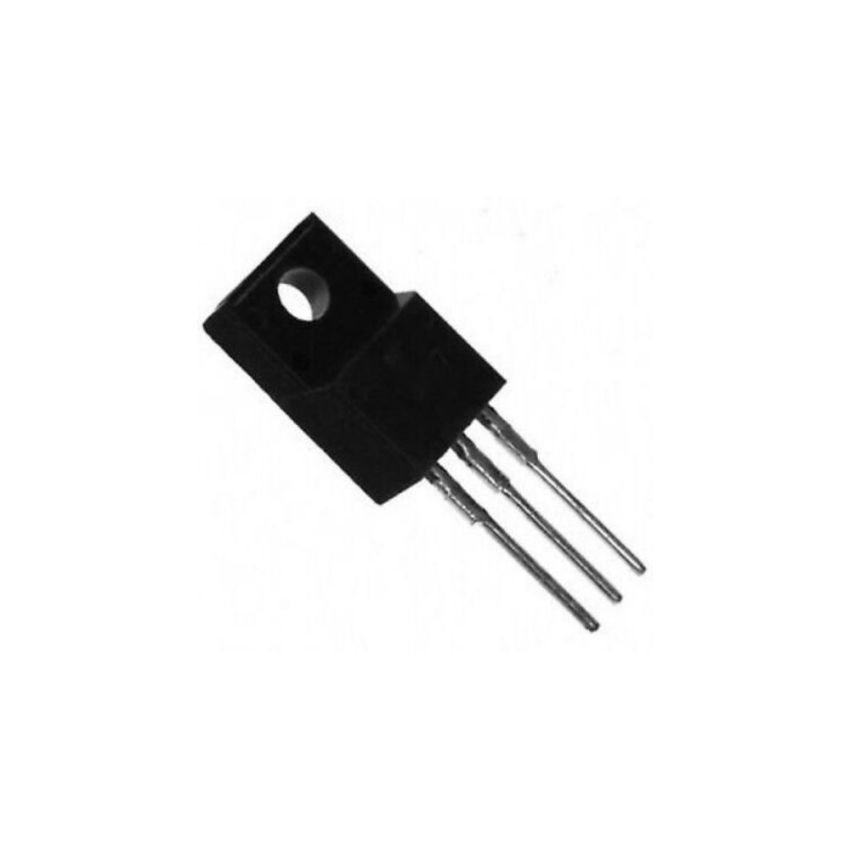

2SB1022, PNP Silicon Power Darlington Transistor, TO-220Fa Package

The 2SB1022 is a PNP silicon power Darlington transistor housed in a TO-220Fa package. Designed for high-power switching applications, it features a high DC current gain with a minimum h_FE of 2000 at a collector current of 3A. The transistor exhibits a low collector-emitter saturation voltage, with a maximum V_CE(sat) of 1.5V at 3A, minimizing power loss during operation. With a maximum collector current of 7A and a collector-emitter voltage rating of 60V, the 2SB1022 is suitable for various high-power applications, including hammer drives and pulse motor drives. It is complementary to the 2SD1417 NPN transistor, making it ideal for push-pull amplifier configurations. The TO-220Fa package ensures efficient heat dissipation and facilitates easy mounting.

• High DC Current Gain: Minimum h_FE of 2000 at I_C = 3A, ensuring efficient amplification.
• Low Collector-Emitter Saturation Voltage: Maximum V_CE(sat) of 1.5V at I_C = 3A, reducing power loss.
• High Collector Current: Supports a maximum collector current of 7A, suitable for high-power applications.
• Complementary to 2SD1417: Pairs with the 2SD1417 NPN transistor for push-pull configurations.
• TO-220Fa Package: Provides efficient heat dissipation and ease of mounting.
• High Thermal Stability: Designed to operate at high junction temperatures up to 175°C, ensuring reliability in demanding environments.
