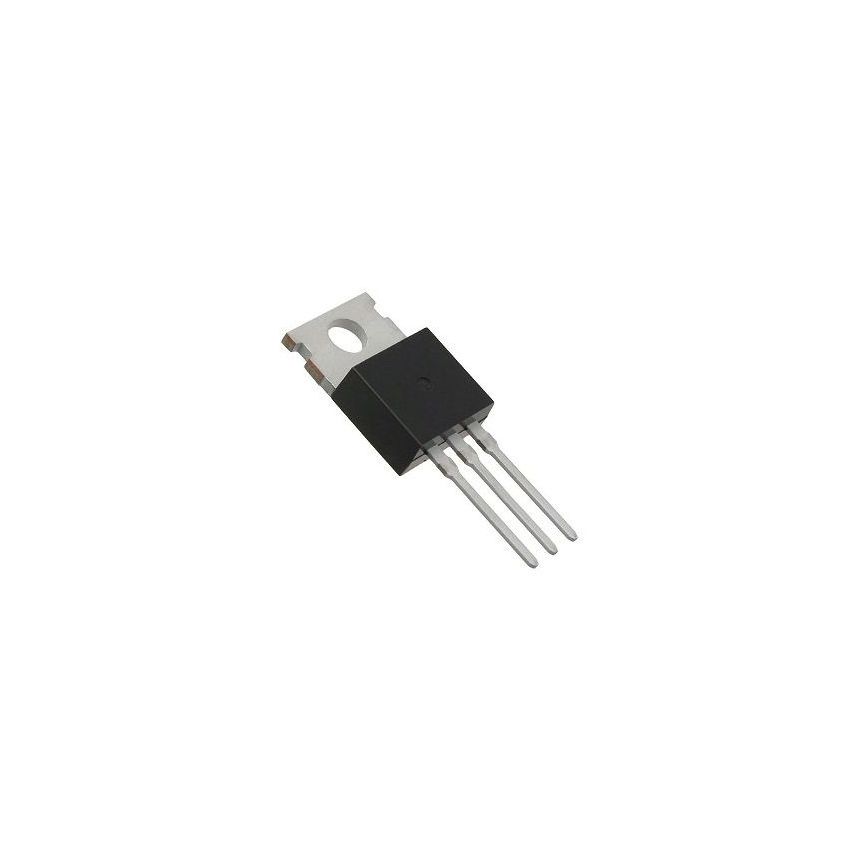

2SC2233 ,NPN Silicon Power Transistor, 60V VCEO, 4A IC,TO-220

The 2SC2233 is a high-performance NPN silicon power transistor designed for efficient use in television horizontal deflection output circuits and other applications requiring reliable switching and amplification. It features a collector-emitter voltage (VCEO) of 60V, a collector current (IC) of 4A continuous, and a peak current of 10A, making it suitable for high-power operations

With a low collector-emitter saturation voltage and high DC current gain, this transistor ensures minimal power loss and robust signal amplification. The TO-220 package enhances heat dissipation, making it durable under heavy loads.

Whether you're designing high-performance electronics or upgrading existing systems, the 2SC2233 delivers consistent performance and reliability.

Key Features :

• Low collector-emitter saturation voltage for efficient power applications.
• High DC current gain (hFE) for improved signal amplification.
• Handles up to 40W power dissipation, ideal for TV horizontal deflection circuits.
• Wide operating temperature range of -55C to +150C for diverse environments.
• TO-220 package for easy mounting and heat dissipation.
• Dynamic characteristics include a gain-bandwidth product of 5 MHz.
