MBRF20200CT, Schottky Barrier Rectifier, TO-220F-3 Package

The MBRF20200CT is a Schottky barrier rectifier optimized for low voltage, high-frequency applications such as switching power supplies, freewheeling diodes, and polarity protection circuits. Its low forward voltage drop and fast switching characteristics make it a reliable choice for high-efficiency rectification applications. The TO-220F-3 package ensures electrical insulation and effective heat dissipation, making it a preferred choice for high-power designs.

• High Current Capability: Supports a forward average current (I_F) of 20A, making it suitable for high-power applications.
• Low Forward Voltage Drop: Ensures efficient operation with a forward voltage (V_F) of 0.9V at 10A and 1.0V at 20A, reducing power losses.
• High Surge Current Rating: Withstands maximum surge current (I_FSM) up to 150A, providing robustness against transient conditions.
• Highly Stable Oxide Passivated Junction: Enhances device reliability and long-term stability in power applications.
• Fast Switching Speed: Designed for high-frequency rectification, improving efficiency in switching power supplies and inverters.

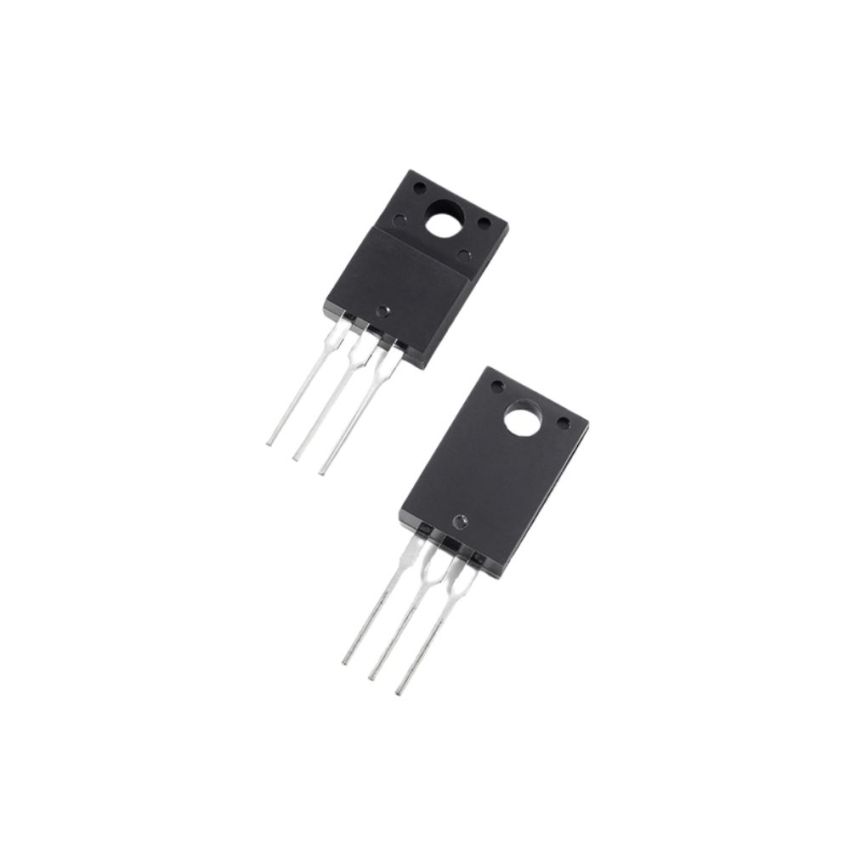

• Fully Isolated TO-220F-3 Package: Offers electrical isolation without requiring additional insulation hardware, making installation easier.
