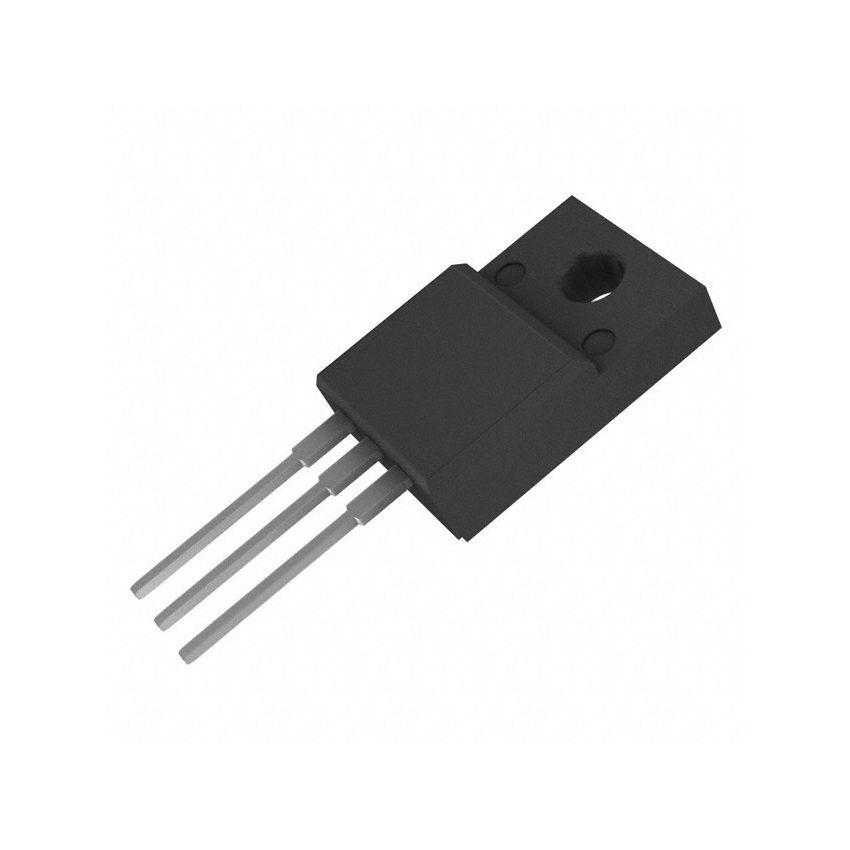

MBRF20200CT, 200V 20A Schottky Rectifier, TO-220F-3

The MBRF20200CT is a dual Schottky barrier rectifier designed for high-efficiency power conversion applications. With its low forward voltage drop and high surge current capability, it is well-suited for use in switching power supplies, free-wheeling diodes, and polarity protection diodes. The device's TO-220F-3 package offers electrical isolation, simplifying thermal management and assembly.​

Key Features:

• High Current Capability: Delivers up to 20A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Ensures efficient operation with minimal power loss.​
• High Surge Current Handling: Capable of withstanding surge currents up to 150A.​
• Fast Switching Performance: Ideal for high-frequency applications due to rapid response time.​
• Isolated Package: TO-220F-3 package provides electrical isolation, eliminating the need for additional insulation hardware.​
• Thermal Stability: Operates reliably over a wide temperature range, enhancing durability.​

Additional Specifications:

• Type: Schottky Rectifier
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 200V
• Forward Average Current (If): 20A
• Forward Voltage (Vf): 0.95 At 10A
• Maximum Surge Current: 150A
• Reverse Current (Ir): 1Ma At 25°C
• Dimensions: TO-220F-3 Package
