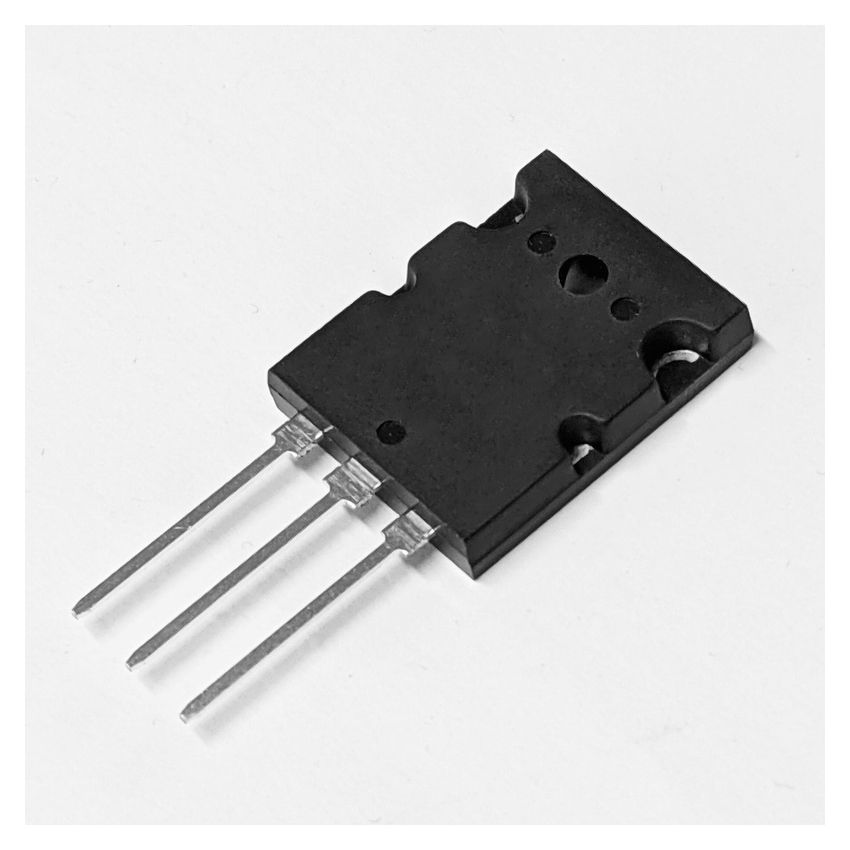

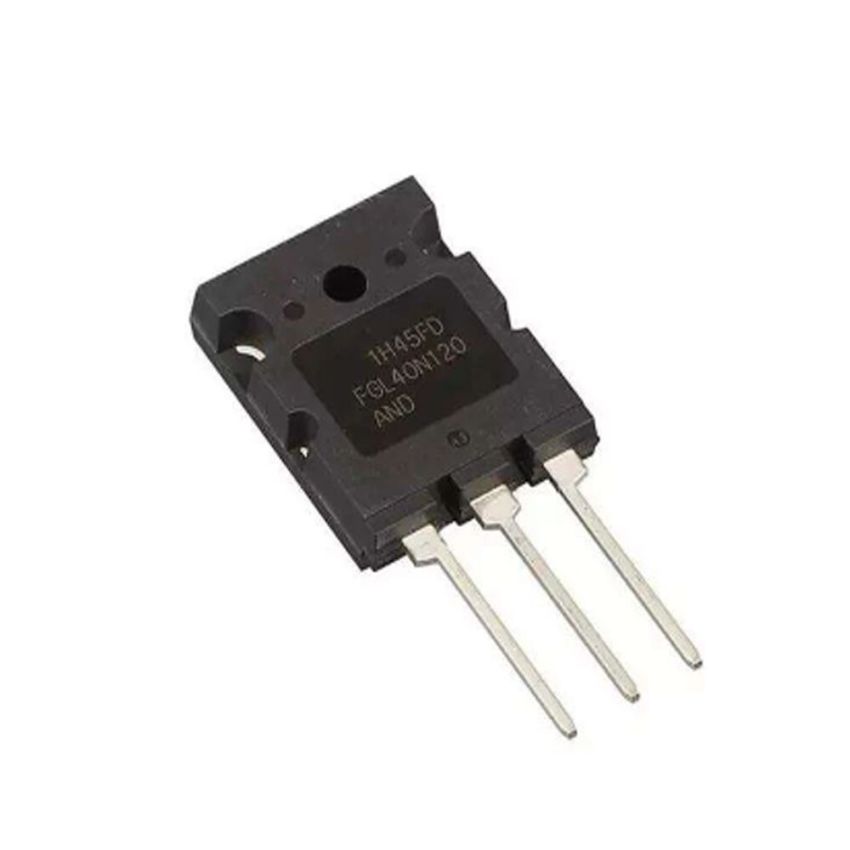

FGL40N120AND, NPT IGBT with FRD, TO-264,1200V

The FGL40N120AND from Fairchild is a 1200V NPT IGBT designed for high-efficiency power switching. With an integrated fast recovery diode and robust current/voltage ratings, it is well-suited for induction heating, UPS systems, motor control, and general-purpose inverters. Its TO-264 package allows for enhanced thermal performance and secure mounting in high-power assemblies.

Key Features:

• High Voltage Rating: Withstands up to 1200V collector-emitter voltage.
• High Current Capability: Operates at 40A continuous collector current at 100°C.
• Low VCE(sat): Saturation voltage as low as 2.6V at 40A, improving conduction efficiency.
• Fast Reverse Recovery Diode: Built-in freewheeling diode with trr = 75ns.
• Short-Circuit Withstand: Up to 10µs at 600V, VGE = 15V.
• High Power Dissipation: Rated up to 500W at 25°C.

Additional Specifications:

• Mounting Style: Through Hole
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: ±25V
• Continuous Collector Current at 25 C: 64A
• Power Dissipation: 500W
• Operating Temperature Range: -55+150°C
