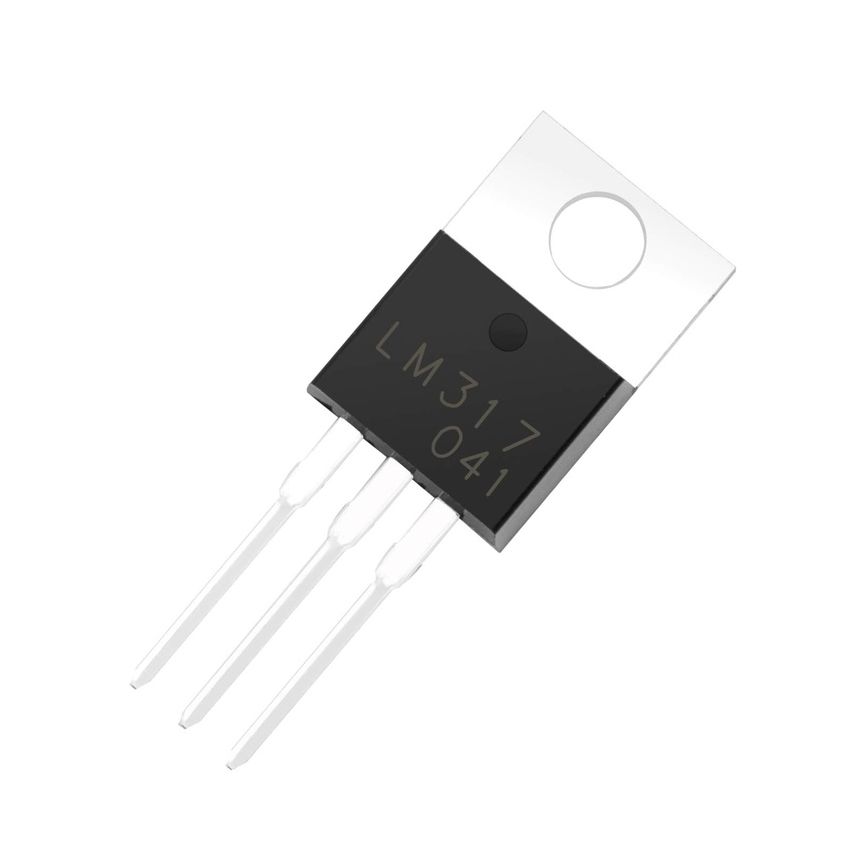

LM317T, 1.2V–37V Adjustable Voltage Regulator, TO-220-3

The LM317T is a monolithic integrated circuit designed for positive adjustable voltage regulation. It is capable of supplying more than 1.5A over an output voltage range of 1.2V to 37V. Requiring only two external resistors to set the output voltage, it simplifies the design of power supplies. The device features internal current limiting, thermal shutdown, and safe operating area compensation, making it robust and reliable. Its versatility allows it to be used in a wide range of applications, including programmable output regulation and precision current regulation.​

Key Features:

• Adjustable Output Voltage: Provides an output voltage range from 1.2V to 37V, offering flexibility for various applications.​
• High Output Current Capability: Delivers up to 1.5A of output current, suitable for powering demanding loads.​
• Comprehensive Protection Features: Includes current limiting, thermal overload protection, and safe operating area protection for robust operation.​
• Excellent Regulation Characteristics: Features line regulation of 0.01% and load regulation of 0.1%, ensuring stable output.​
• Versatile Applications: Can be configured as a precision current regulator or a programmable output regulator with minimal external components.​
• Standard TO-220-3 Package: Facilitates easy mounting and efficient thermal management.​

Additional Specifications:

• Package Type: TO-220-3
• Supply Voltage: 3-40V
• Current: 1.5A
• Type: Adjustable Linear Voltage Regulator​
