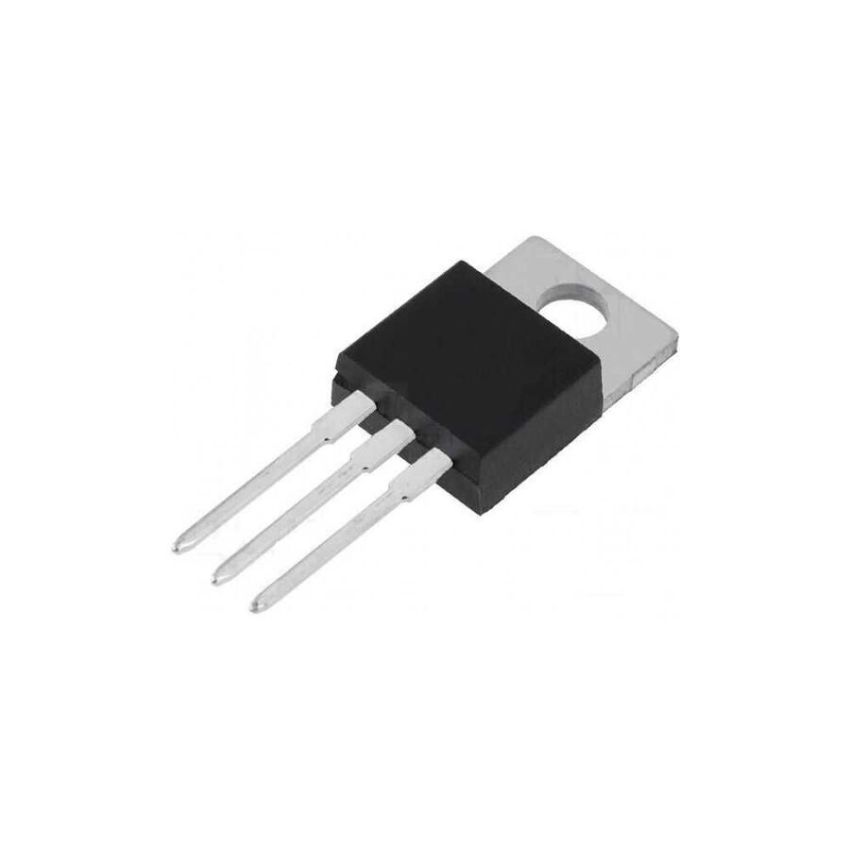

ER1602CT,Glass Passivated Dual Superfast Rectifier,TO-220,16A

The ER1602CT is a high-performance, dual superfast rectifier packaged in a TO-220 mold. Designed with glass passivated die construction, this rectifier ensures enhanced durability and performance in high-stress applications, including SMPS, inverters, and free-wheeling diodes. With a peak repetitive reverse voltage of 200V and an impressive forward average current rating of 16A, the ER1602CT is built to handle substantial power loads efficiently.

It features a low forward voltage drop, minimizing energy loss, and a high surge current capability of 200A, making it ideal for applications that experience frequent current spikes. Additionally, its fast recovery time of 35-50 nanoseconds allows it to operate efficiently at high frequencies, catering to the needs of modern, high-speed circuits.

The ER1602CT is fully compliant with RoHS standards, making it an eco-friendly choice for environmentally conscious designs. With its robust operating temperature range of -55°C to 150°C and lead-free construction, this rectifier is suitable for use in various harsh environments and demanding applications.

• High Surge Current Capability: This rectifier can handle surge currents up to 200A, ideal for demanding applications.
• Superfast Recovery: With a recovery time of 35-50ns, it ensures efficiency in high-frequency applications.
• Low Forward Voltage Drop: Operates with minimal power loss, ensuring energy-efficient performance.
• High Temperature Tolerance: Rated for operating temperatures from -55°C to 150°C, perfect for rigorous conditions.
• Glass Passivated Die Construction: Durable design suited for high-performance use in industrial applications.
• RoHS Compliant: Environmentally friendly, with lead-free construction as per RoHS standards.
