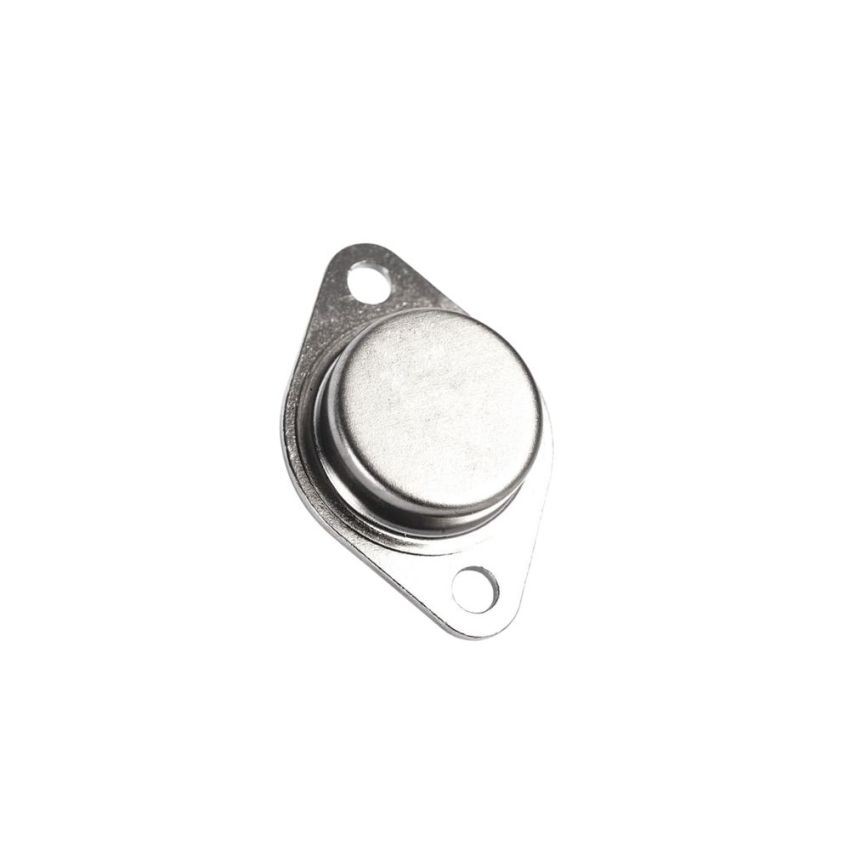

2SC1942, High-Voltage NPN Power Transistor, TO-3

The 2SC1942 is a silicon NPN power transistor designed for high-voltage power switching applications, particularly in TV horizontal deflection output stages. It features a high collector-emitter voltage of 800 V and a collector current capacity of 3 A, making it suitable for demanding applications. The transistor's high breakdown voltage of 1500 V ensures reliable performance under high-stress conditions. Encased in a durable TO-3 package, the 2SC1942 offers excellent thermal performance and reliability.

• High collector-emitter voltage (V_CE) of 800 V
• Collector current (I_C) of 3 A
• High breakdown voltage (V_CEX) of 1500 V
• Designed for TV horizontal deflection output applications
• High-speed switching capabilities
• Robust TO-3 package for enhanced thermal performance
