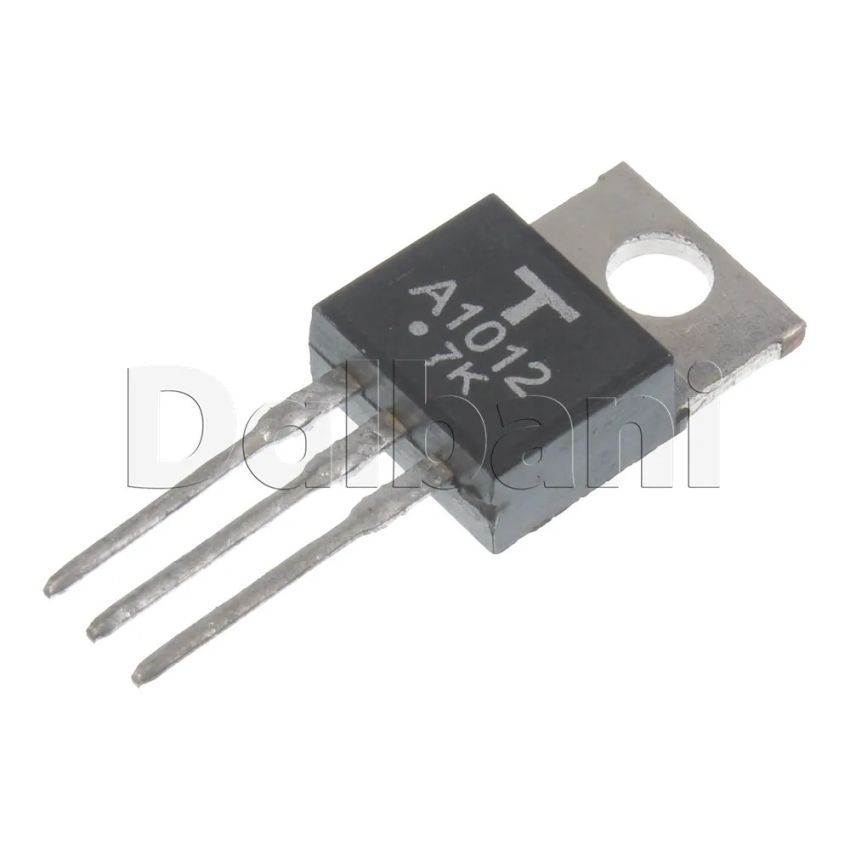

2SA1012 ,PNP Silicon Transistor, -60V VCEO, -5A IC

The 2SA1012 is a high-current silicon PNP epitaxial transistor designed for switching and industrial applications. Featuring a Collector-Emitter Voltage (VCEO) of -60V and a Collector Current (IC) of -5A, it is ideal for use in high-current switching and low saturation voltage circuits. This transistor is part of Toshiba's advanced epitaxial process, ensuring reliability and high-speed performance.

Key Features :

• High Current Capability: Supports a Collector Current (IC) of up to -5A, making it ideal for high-current circuits.
• High Voltage Tolerance: Handles up to -60V Collector-Emitter Voltage (VCEO) for demanding applications.
• Low Saturation Voltage: Provides efficient performance with a maximum VCE(sat) of -0.4V.
• Fast Switching: Offers a typical switching time (tstg) of 1.0us, enabling high-speed operation.
• Durable TO-220AB Package: Ensures efficient thermal management for industrial and power applications.
• Wide Operating Temperature Range: Reliable operation from -55C to +150C.
