J412,P-Channel MOSFET,100V,37A,TO-263 Package

The J412 is a high-performance P-Channel MOSFET designed for efficient switching applications, offering a low on-state resistance of 0.040 Ohm (typ) at Vgs = -10V. This device is ideal for DC-DC converters, relay drives, and motor drive applications. Its advanced trench technology ensures high reliability, low gate charge, and excellent thermal resistance.

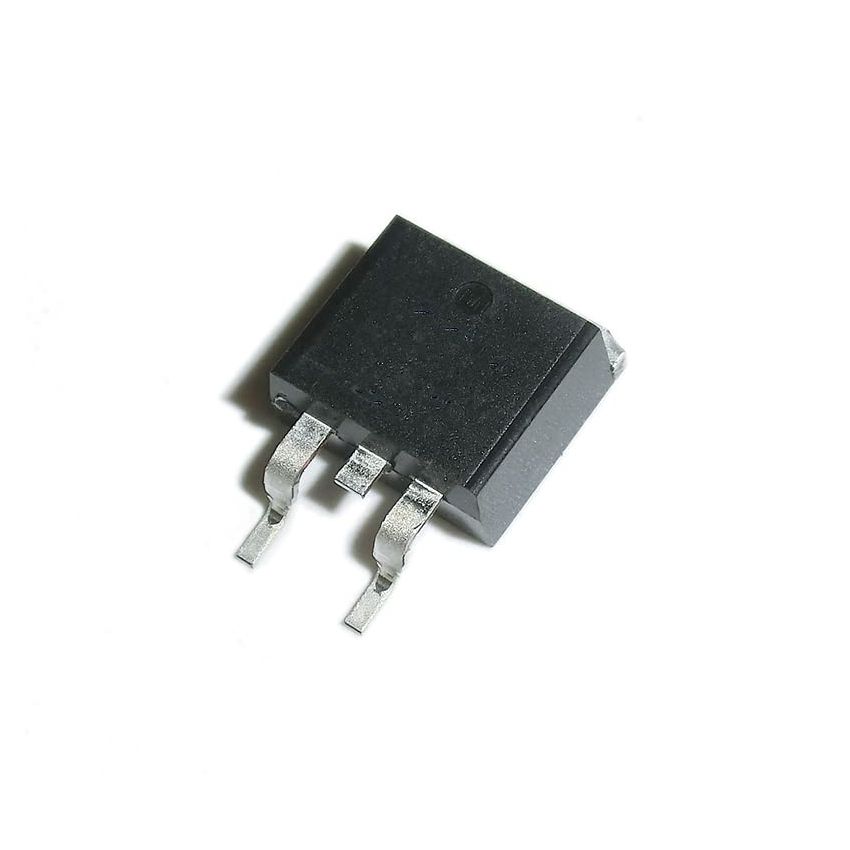

The compact TO-263 package provides ease of mounting and excellent heat dissipation, making it a popular choice for applications requiring high current handling and minimal power loss. Whether you're working on industrial, automotive, or general-purpose designs, the J412 provides optimal performance and durability.

Key Features :

• High Drain-Source Breakdown Voltage: Rated for -100V, suitable for applications requiring high voltage handling.
• Low On-State Resistance: With a typical of 0.040Ohm, ensuring efficient performance with reduced power loss.
• High Current Capability: Continuous drain current of -37A, making it ideal for high-power applications.
• Compact TO-263 Package: Surface-mount package ensuring thermal efficiency and space savings for PCB designs.
• Fast Switching Performance: Supports high-speed switching for DC-DC converters and other dynamic load conditions.
• Reliable Thermal Performance: Capable of handling up to 72.7W of power dissipation, ensuring robust operation in demanding environments.
