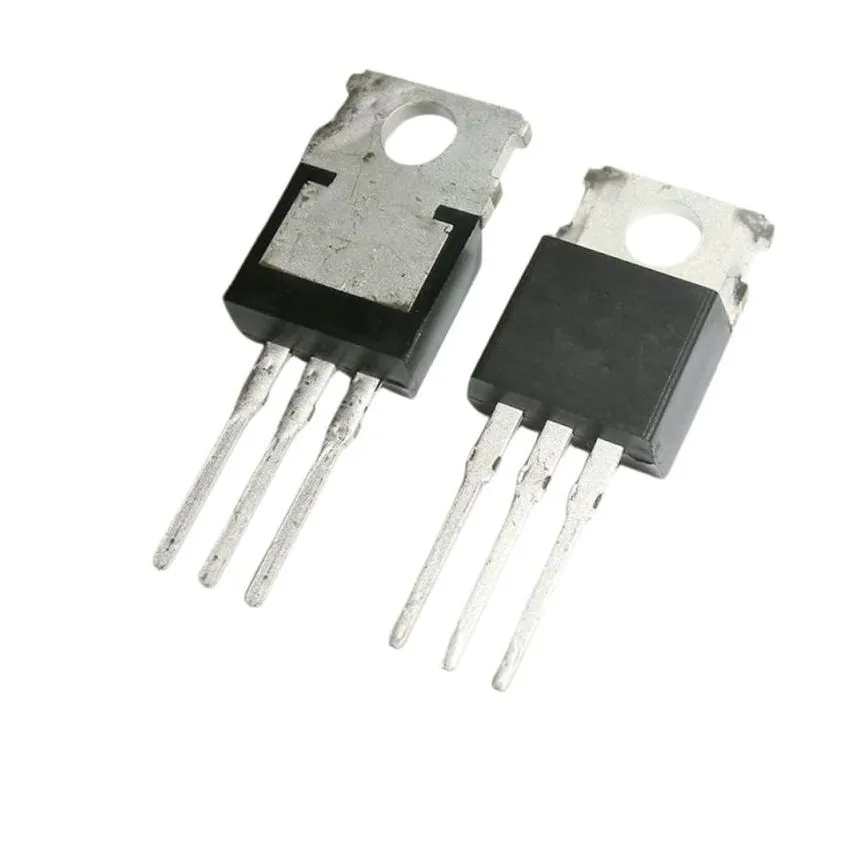

2SC2075, NPN Silicon Power Transistor, TO-220 Package

The 2SC2075 is an NPN silicon power transistor housed in a TO-220 package. It is designed for 27 MHz power amplifier applications and is recommended for the output stage of AM 4W transmitters. The transistor offers a high transition frequency of 100 MHz, ensuring suitability for high-frequency applications. It supports a collector current of up to 4 A and a collector-emitter voltage of 80 V, making it suitable for medium-power applications. The device features a wide area of safe operation, ensuring reliable performance across various operating conditions. Its low saturation voltage contributes to efficient performance with minimal power loss. Encased in a TO-220 package, the 2SC2075 provides efficient heat dissipation and ease of mounting.

• High Transition Frequency: Transition frequency (f_T) of 100 MHz, suitable for high-frequency applications.
• Wide Area of Safe Operation: Ensures reliable performance across various operating conditions.
• High Collector-Emitter Voltage: Rated at 80 V, enabling operation in moderate voltage circuits.
• High Collector Current: Supports up to 4 A, suitable for medium-power applications.
• Low Saturation Voltage: Ensures efficient performance with minimal voltage drop.
• TO-220 Package: Facilitates easy mounting and efficient heat dissipation.
