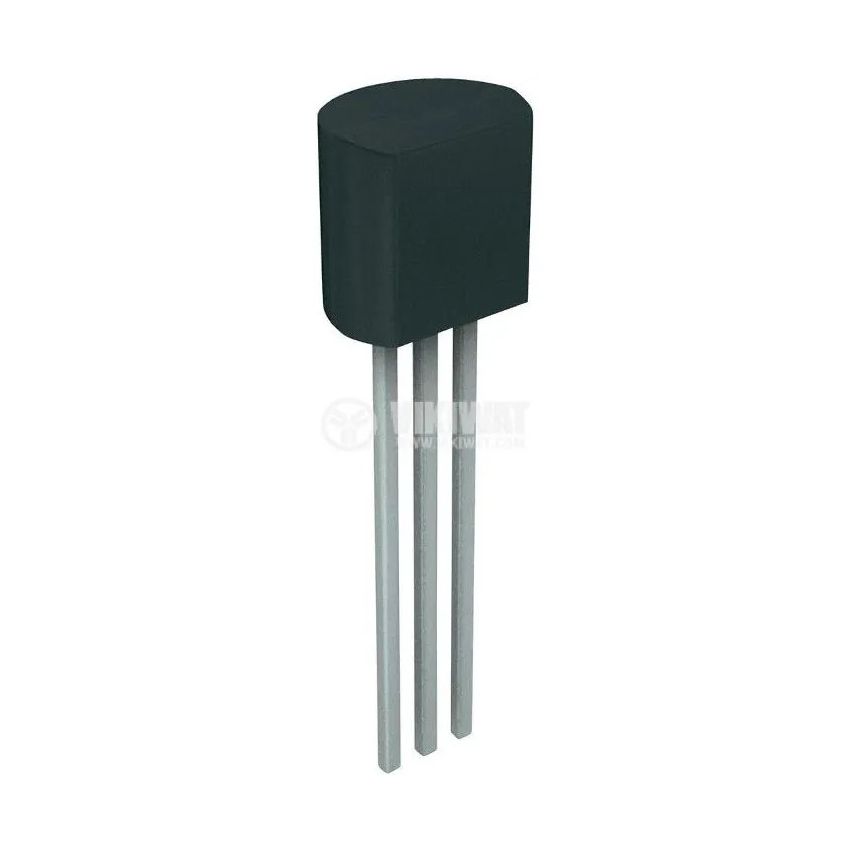

STS8050, NPN Silicon Transistor, TO-92, 25V, 800mA

The STS8050 is a high-current NPN Silicon Transistor designed for applications requiring efficient push-pull operation. With a maximum collector-emitter voltage of 25V and a continuous collector current rating of 800mA, this transistor ensures reliable performance in a variety of circuit designs. It is housed in a compact TO-92 package, offering easy integration into PCB layouts.

Key Features :

• High Collector Current Capability: Supports up to 800mA of continuous collector current for demanding applications.
• Voltage Tolerance: Maximum collector-emitter voltage of 25V ensures suitability for low-voltage designs.
• Compact Design: Encapsulated in a TO-92 package for ease of use in space-constrained designs.
• Wide Operating Temperature Range: Can operate reliably from -55C to 150C.
• Complementary Pairing: Optimized to work in tandem with the STS8550 for efficient push-pull operation.
• Reliable Performance: Designed with built-in robustness to withstand high current applications.
