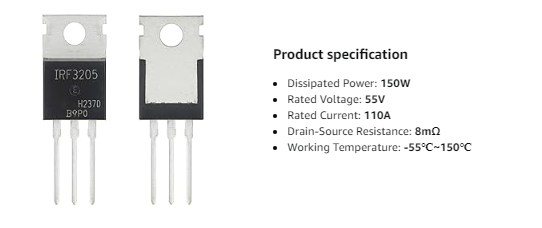

IRF3205,Power Transistor,MOSFET,55V, 110A,TO-220

The IRF3205 Power MOSFET is a high-performance N-channel transistor designed for applications requiring high current capacity and low conduction losses. With its ability to handle a continuous drain current of up to 110A and a maximum drain-source voltage of 55V, it is ideal for use in power management systems, motor control, and high-power switching applications. The MOSFET’s ultra-low on-resistance (Rds(on)) of just 8.0 mOhm ensures minimal heat generation and energy loss during operation, making it an efficient choice for a wide range of high-power applications.

This MOSFET is built for ruggedness, with an operating junction temperature range from -55C to +175C, ensuring reliable performance in both standard and demanding environments. Its fully avalanche-rated design further enhances its reliability, making it suitable for use in applications that experience voltage spikes and transient conditions.

The IRF3205 is housed in a TO-220 package, providing an easy-to-mount solution for circuit designs. With its fast switching capabilities, this MOSFET reduces switching losses, contributing to overall system efficiency. Whether you're working on a power supply, motor driver, or other high-power circuits, the IRF3205 offers excellent performance and durability to meet your needs.

• High Current Capability: The IRF3205 supports a continuous drain current of 110A at 25C, making it ideal for high power applications.
• High Voltage Tolerance: With a maximum voltage of 55V, this MOSFET ensures reliable operation in demanding environments.
• Low On-Resistance: Features ultra-low Rds(on) of just 8 mOhm for reduced conduction losses and improved efficiency.
• Fast Switching: Supports high-speed switching, enhancing performance in applications requiring quick response times.
• Robust Design: Fully avalanche rated and capable of operating at temperatures ranging from -55C to +175C for high reliability.
• Versatile Use: Ideal for power management, motor control, power supplies, and other high-power switching applications.
