BYW29E-200,Ultrafast Recovery Rectifier Diode,200V,8A

The BYW29E-200 is a high-performance Fast Recovery Rectifier Diode designed for switching power supplies, freewheeling diodes, and rectification applications. Its ultrafast recovery time reduces power losses, making it ideal for high-frequency SMPS (Switch Mode Power Supplies), UPS (Uninterruptible Power Supplies), and industrial power electronics.

With a Peak Reverse Repetitive Voltage (VRRM) of 200V and a Forward Average Current (If) of 20A, the BYW29E-200 provides excellent performance in high-voltage power conversion applications. The low Forward Voltage (Vf) of 1.05V ensures minimal energy loss, enhancing the efficiency of power circuits.

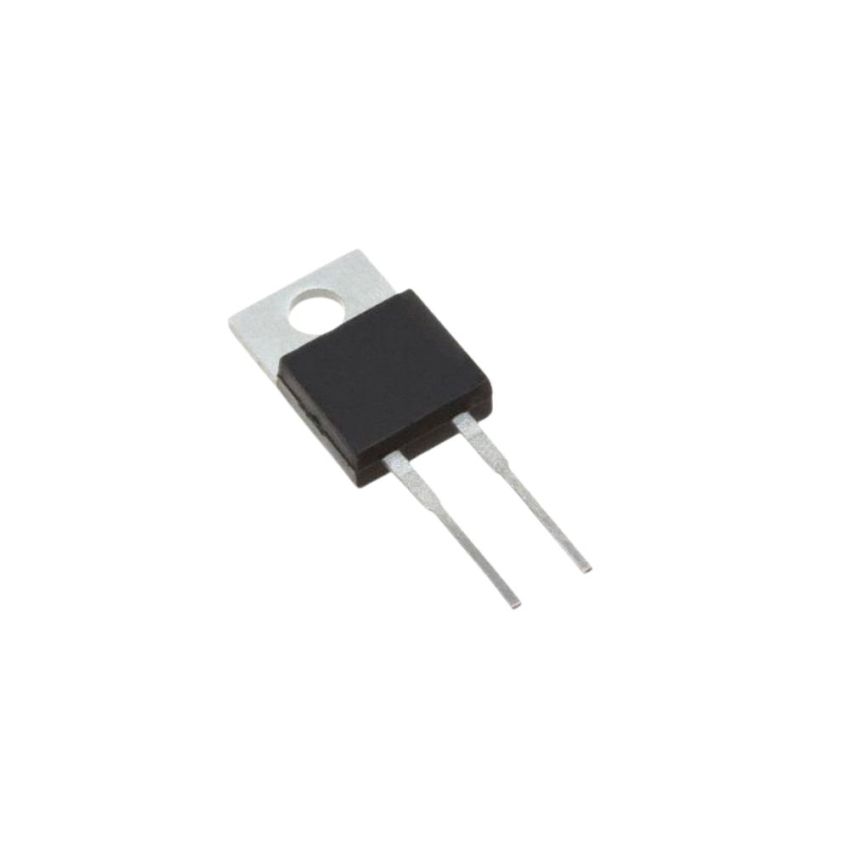

Encased in a TO-220-2 package, this rectifier diode ensures superior thermal dissipation and easy mounting, making it an excellent choice for power rectification, freewheeling diodes, and snubber circuits. Whether used in industrial equipment, motor drivers, or power electronics, the BYW29E-200 offers exceptional reliability and performance.

• High Voltage and Current Handling: Supports up to 200V Peak Reverse Repetitive Voltage (VRRM) and 20A Forward Average Current (If), making it ideal for power rectification applications.
• Fast Recovery Time: Designed for high-frequency switching applications, reducing power losses and improving efficiency.
• Low Forward Voltage Drop: Features a Forward Voltage (Vf) of 1.05V at 10A, ensuring minimal power dissipation.
• High Surge Current Capability: Handles up to 150A Maximum Surge Current (IFSM), protecting against transient conditions.
• TO-220-2 Package: Offers excellent thermal performance and easy through-hole mounting, ensuring reliable operation in industrial applications.
• Reliable Performance: Designed with low Reverse Current (Ir) of 10µA at 200V, providing stable and long-term operation in rectification circuits.
