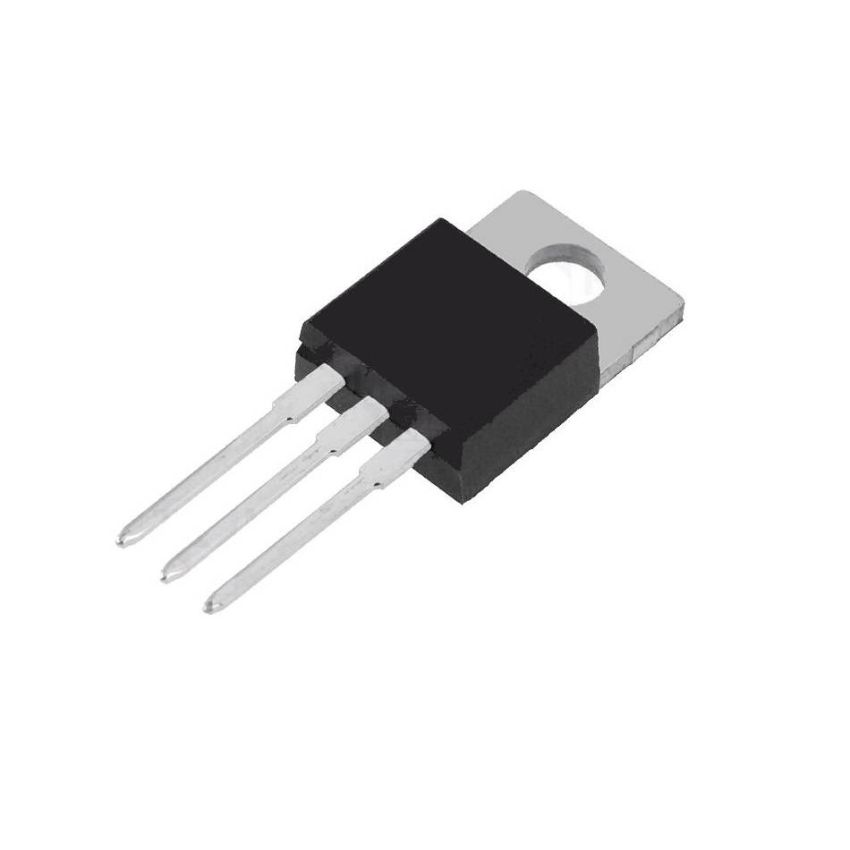

BUZ90,N-Channel Power MOSFET-600V,4.5A,TO-220 AB

The BUZ90 is a high-performance N-Channel Power Transistor for demanding power applications. With a drain-source breakdown voltage of 600V and a continuous drain current of 4.5A, this MOSFET is optimized for high-voltage switching and industrial control circuits. Its robust TO-220 AB package provides excellent thermal performance, ensuring reliability in high-power environments.

Key Features :

• High Voltage Capability: Supports a maximum drain-source breakdown voltage of 600V.
• Efficient Power Handling: Continuous drain current up to 4.5A with a low Rds(on) of 1.6 Ohm.
• Enhanced Durability: Avalanche-rated design for reliability under stress.
• Thermal Performance: Packaged in TO-220 AB with efficient heat dissipation.
• High Power Dissipation: Handles up to 75W of power dissipation.
• Wide Operating Temperature Range: Operates reliably from -55C to 150C.
