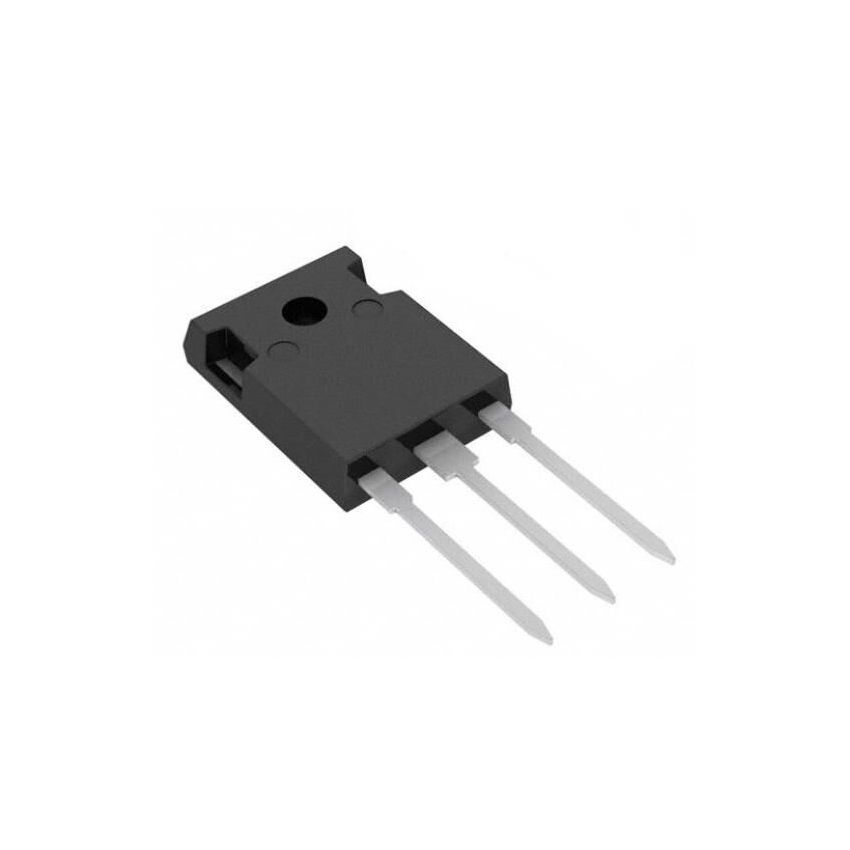

KW40T120, 1200V 40A TrenchStop IGBT, TO-247-3

The KW40T120 is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for demanding power applications. With its high voltage and current capabilities, integrated fast recovery diode, and robust thermal performance, it is ideal for use in inverters, motor drives, and power supply systems. The TO-247-3 package ensures efficient heat dissipation, making it suitable for applications requiring reliable and efficient power switching.​

Key Features:

• High Voltage Capability: Supports collector-emitter voltages up to 1200V, suitable for high-voltage applications.​
• High Current Handling: Delivers continuous collector currents up to 75A at 25°C, accommodating substantial power loads.​
• Integrated Fast Recovery Diode: Features a soft, fast recovery anti-parallel Emitter Controlled HE diode for efficient switching.​
• Robust Design: Offers a short-circuit withstand time of 10µs, enhancing reliability in fault conditions.​
• Efficient Thermal Management: Encased in a TO-247-3 package, facilitating effective heat dissipation.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -40°C to +150°C, ensuring performance in diverse environments.​

Additional Specifications:

• Mounting Style: Through Hole
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 75A
• Power Dissipation: 270W
• Operating Temperature Range: -40+150°C
